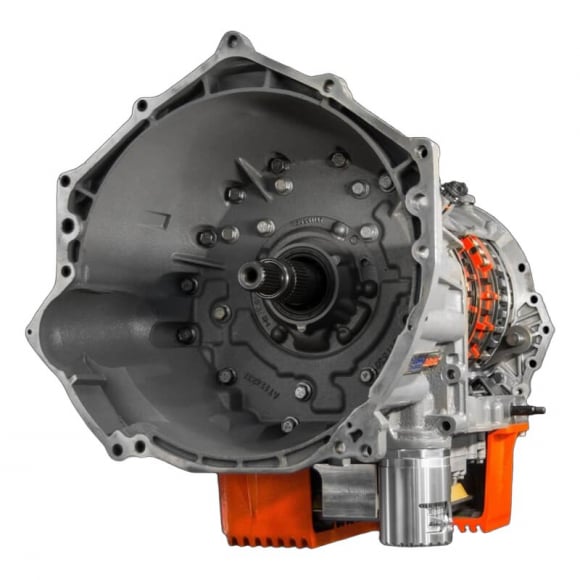

This isn't just a replacement transmission; it's a Suncoast GMAX-CAT1 CAT 1 Custom Allison Transmission engineered for uncompromising performance and reliability in your 2007.5-2010 LMM Duramax with a rating of up to 500 HP. SunCoast has rigorously designed this Allison Category Transmission system, utilizing the latest proven friction and steel technologies from industry leaders like Alto and Raybestos. We work directly with these companies to develop proprietary, exclusive product lines, ensuring uncompromised, top-tier quality across the entire transmission build. Whether your needs are heavy towing, sled pulling, drag racing, or simply dependable daily driving, this unit is custom-engineered in-house to exact specifications to meet and exceed those demands.
- Proprietary Frictions: We use SunCoast-exclusive C1, C2, C3, and C4 Alto carbonite and Raybestos SCZ frictions that feature a unique waffle pattern instead of center slots. This innovative design helps the clutch material retain oil, promoting better cooling when the clutch isn't applied.
- Enhanced Apply Pistons: The redesigned apply pistons feature improved rubber compounds proven to withstand higher heat. This custom piston allows for a thicker spring apply plate, which replaces the thin OEM plate that can cone and cause uneven application, leading to premature clutch failure.
- Custom Apply Plate: Our exclusive apply plate actively redirects fluid to better lubricate the frictions from the inside out. This fully lubricates the entire friction surface, unlike the OEM style that lubricates from the center out, which often leaves the inner half of the clutch burnt and damaged.
- Triple Disc Torque Converter: The in-house designed and manufactured Allison 1000 torque converter features a heavy-duty forged billet steel cover for unbeatable lock-up performance. It includes custom pump and turbine modifications, and each furnace brazed fin is Tig Welded for superior reinforcement. It also features our proprietary trapezoidal clutch teeth and is available with a variety of stall speeds and torque multiplication factors.
- New Internal Wiring Harness: For maximum reliability, every Category Allison Transmission includes a new internal wiring harness. This crucial detail prevents the potential premature failure that occurs when the old, brittle plastic connectors break during disassembly.
- Additional Durability: The transmission includes an exclusive smart trim/clutch control valve and all necessary parts to modify the C2 clutch piston for increased clutch durability.
Investing in the GMAX-CAT1 means equipping your Duramax with an intelligent, highly durable power transfer system built for the long haul. Every modification, from the proprietary frictions and custom apply plate to the heavy-duty billet converter and new internal wiring harness, is a deliberate step to eliminate weak points and provide an outstandingly robust unit. This comprehensive approach ensures that you get a transmission system that is not only powerful enough to handle serious performance applications but is also reliable enough to maintain that performance for years to come.
Transmission contains the following:
- SunCoast custom clutch packs
- SunCoast custom Steels
- SunCoast custom billet plates
- SunCoast custom overhaul kit
- Valve body calibration kit
- SunCoast gasket kit
- Pan Filter
- Spin on filter
- Pan gasket
- SunCoast Filter Loc
- New internal wiring harness
- SunCoast Triple Disc Billet Converter
This isn't just a replacement transmission; it's a Suncoast GMAX-CAT1 CAT 1 Custom Allison Transmission engineered for uncompromising performance and reliability in your 2007.5-2010 LMM Duramax with a rating of up to 500 HP. SunCoast has rigorously designed this Allison Category Transmission system, utilizing the latest proven friction and steel technologies from industry leaders like Alto and Raybestos. We work directly with these companies to develop proprietary, exclusive product lines, ensuring uncompromised, top-tier quality across the entire transmission build. Whether your needs are heavy towing, sled pulling, drag racing, or simply dependable daily driving, this unit is custom-engineered in-house to exact specifications to meet and exceed those demands.
Proprietary Frictions: We use SunCoast-exclusive C1, C2, C3, and C4 Alto carbonite and Raybestos SCZ frictions that feature a unique waffle pattern instead of center slots. This innovative design helps the clutch material retain oil, promoting better cooling when the clutch isn't applied.
Enhanced Apply Pistons: The redesigned apply pistons feature improved rubber compounds proven to withstand higher heat. This[...]
This isn't just a replacement transmission; it's a Suncoast GMAX-CAT1 CAT 1 Custom Allison Transmission engineered for uncompromising performance and reliability in your 2007.5-2010 LMM Duramax with a rating of up to 500 HP. SunCoast has rigorously designed this Allison Category Transmission system, utilizing the latest proven friction and steel technologies from industry leaders like Alto and Raybestos. We work directly with these companies to develop proprietary, exclusive product lines, ensuring uncompromised, top-tier quality across the entire transmission build. Whether your needs are heavy towing, sled pulling, drag racing, or simply dependable daily driving, this unit is custom-engineered in-house to exact specifications to meet and exceed those demands.
- Proprietary Frictions: We use SunCoast-exclusive C1, C2, C3, and C4 Alto carbonite and Raybestos SCZ frictions that feature a unique waffle pattern instead of center slots. This innovative design helps the clutch material retain oil, promoting better cooling when the clutch isn't applied.
- Enhanced Apply Pistons: The redesigned apply pistons feature improved rubber compounds proven to withstand higher heat. This custom piston allows for a thicker spring apply plate, which replaces the thin OEM plate that can cone and cause uneven application, leading to premature clutch failure.
- Custom Apply Plate: Our exclusive apply plate actively redirects fluid to better lubricate the frictions from the inside out. This fully lubricates the entire friction surface, unlike the OEM style that lubricates from the center out, which often leaves the inner half of the clutch burnt and damaged.
- Triple Disc Torque Converter: The in-house designed and manufactured Allison 1000 torque converter features a heavy-duty forged billet steel cover for unbeatable lock-up performance. It includes custom pump and turbine modifications, and each furnace brazed fin is Tig Welded for superior reinforcement. It also features our proprietary trapezoidal clutch teeth and is available with a variety of stall speeds and torque multiplication factors.
- New Internal Wiring Harness: For maximum reliability, every Category Allison Transmission includes a new internal wiring harness. This crucial detail prevents the potential premature failure that occurs when the old, brittle plastic connectors break during disassembly.
- Additional Durability: The transmission includes an exclusive smart trim/clutch control valve and all necessary parts to modify the C2 clutch piston for increased clutch durability.
Investing in the GMAX-CAT1 means equipping your Duramax with an intelligent, highly durable power transfer system built for the long haul. Every modification, from the proprietary frictions and custom apply plate to the heavy-duty billet converter and new internal wiring harness, is a deliberate step to eliminate weak points and provide an outstandingly robust unit. This comprehensive approach ensures that you get a transmission system that is not only powerful enough to handle serious performance applications but is also reliable enough to maintain that performance for years to come.
Transmission contains the following:
- SunCoast custom clutch packs
- SunCoast custom Steels
- SunCoast custom billet plates
- SunCoast custom overhaul kit
- Valve body calibration kit
- SunCoast gasket kit
- Pan Filter
- Spin on filter
- Pan gasket
- SunCoast Filter Loc
- New internal wiring harness
- SunCoast Triple Disc Billet Converter
