Thumbnail Filmstrip of 1989-2002 5.9L 12V / 24V Cummins H-Series Rod Bearing (.25mm Undersize) Clevite CB-1413H-.25mm Images

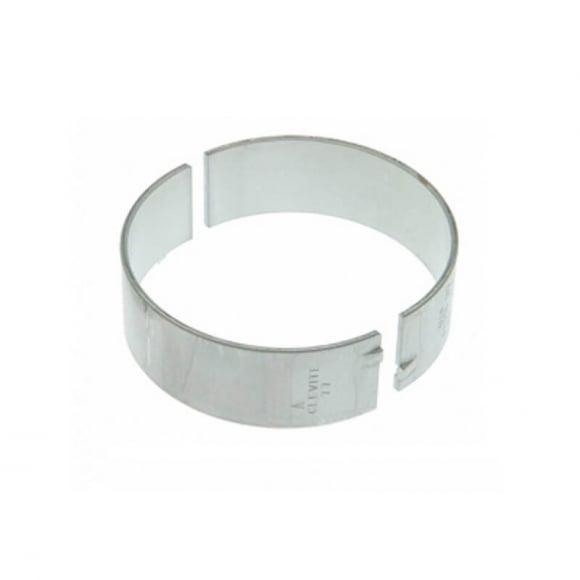

An early 5.9 rod journal ground 0.25 mm undersize will not use the standard CB-1413H. This is the H-series pair at 0.25 mm undersize, for one rod.
- Series: H-series is the Clevite tri-metal performance bearing, with medium eccentricity, high crush, and a thin overlay, so the shell stays seated and clears a larger fillet.
- Size: 0.25 mm undersize, for a journal ground 0.25 mm under standard (about 0.010 inch). A standard journal will be too tight.
- Part number: Clevite CB-1413H-.25MM.
- Fitment: 5.9 Cummins, 1989-2002.
- Does not fit: A standard journal, the P-series CB-1413P-.25MM, or a 2003-up CB-1873H rod.
- Not in the box: The other rod journals are not in the box. Mains, rings, and a piston are not included.
Order today to secure your replacement. Measure the crank journal and confirm standard versus undersize before you install it.
An early 5.9 rod journal ground 0.25 mm undersize will not use the standard CB-1413H. This is the H-series pair at 0.25 mm undersize, for one rod.
- Series: H-series is the Clevite tri-metal performance bearing, with medium eccentricity, high crush, and a thin overlay, so the shell stays seated and clears a larger fillet.
- Size: 0.25 mm undersize, for a journal ground 0.25 mm under standard (about 0.010 inch). A standard journal will be too tight.
- Part number: Clevite CB-1413H-.25MM.
- Fitment: 5.9 Cummins, 1989-2002.
- Does not fit: A standard journal, the P-series CB-1413P-.25MM, or a 2003-up CB-1873H rod.
- Not in the box: The other rod journals are not in the box. Mains, rings, and a piston are not included.
Order today to secure your replacement. Measure the crank journal and confirm standard versus undersize before you install it.
