L5P Duramax Mishimoto Intercooler Pipe And Boot Kit

Thumbnail Filmstrip of L5P Duramax Intercooler Pipe And Boot Kit Mishimoto MMICP-DMAX-17K Images

The Mishimoto intercooler pipes are 3" in diameter throughout with smooth transitions to significantly increase airflow, resulting in more power potential. Our hot-side pipe also eliminates the stock resonator for maximum flow. Combined, the Mishimoto intercooler pipes are up to 55% less restrictive than stock.

Both the hot-side and cold-side utilize a two-piece design for ease of install. To connect the pipes to our Duramax, this kit also includes our silicone boots with DuraCore™ technology. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts.

To add even more reliability, this kit includes Mishimoto constant-tension T-bolt clamps for accurate and consistent holding power. Our cold-side intercooler pipes also feature a CNC-machined quick-disconnect fitting with new O-ring and spring clip to ensure a secure and leak-free fit. Unlike other available pipes on the market, our pipes retain the intake air temp harness mounting location for safe and secure wire routing, just as Chevy/GMC intended. Our intercooler pipes also incorporate two bungs that can be drilled and tapped for sensors, so you can easily monitor your L5P's performance.

The Mishimoto 2017-2019 Chevrolet/GMC 6.6L Duramax L5P intercooler pipe and boot kit is a direct bolt-on upgrade and is available in a polished or wrinkle black powder coated finish. Like all our Duramax products, this kit includes our Mishimoto Lifetime Warranty.

Features:

Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
3.0" mandrel-bent aluminum polished pipes eliminate restrictive bends
Up to 55% less restrictive than stock piping
Includes new quick-disconnect O-ring and spring clip
Hot-side eliminates stock resonator for maximum flow
Eliminates failure-prone stock throttle valve connector
Retains temp sensor harness mount for safe and secure wire routing
Internal bead roll ensures secure connection between coupler and throttle valve
CNC-machined quick-disconnect ensures precise, leak-free fit
Additional bungs can be drilled and tapped for sensors
Requires no additional tuning
Includes Mishimoto silicone boots with DuraCore™ technology and Mishimoto constant-tension T-bolt clamps
Available in polished or wrinkle-black powder coated finish

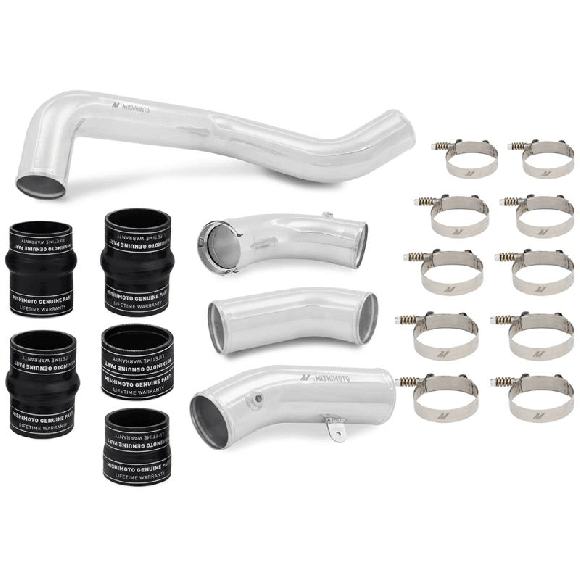

Includes:

(3) Aluminum Intercooler Pipes

(1) Aluminum Intercooler Pipe w/ O-Ring and Spring Clip

(5) Silicone Boots with DuraCore™ Technology

(10) Constant-Tension T-Bolt Clamps

Improve the power and efficiency of your 2017-2019 Chevrolet/GMC 6.6L Duramax L5P with our Mishimoto intercooler pipe and boot kit. The factory L5P intercooler pipes are a measly 2.5" diameter that chokes the engine, while tight bends and a resonator on the hot side create even more restriction.

The Mishimoto intercooler pipes are 3" in diameter throughout with smooth transitions to significantly increase airflow, resulting in more power potential. Our hot-side pipe also eliminates the stock resonator for maximum flow. Combined, the Mishimoto intercooler pipes are up to 55% less restrictive than stock.

Both the hot-side and cold-side utilize a two-piece design for ease of install. To connect the pipes to our Duramax, this kit also includes our silicone boots with DuraCore™ technology. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts.

To add even more reliability, this kit includes [...]
