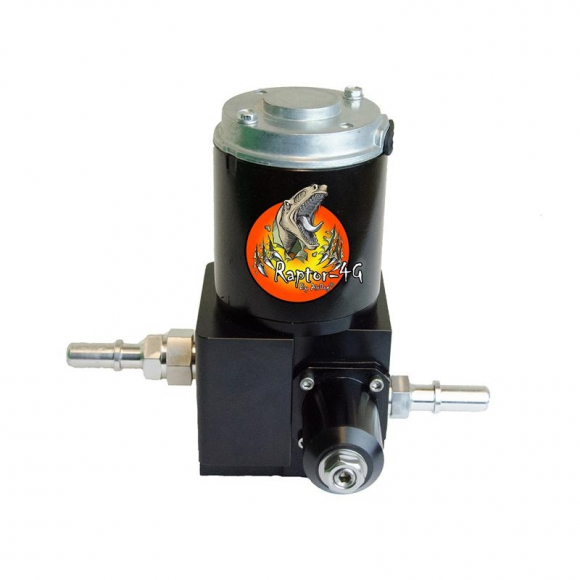

PureFlow AirDog Raptor-4G RP-4G-150 Lift Pump R4SBF221 for 2008–2010 Ford 6.4L Powerstroke

The Raptor-4G mounts to the frame rail and feeds the factory fuel filter and injection pump. It is internally regulated, so no return line is needed.

Key Benefits & Features

• Flow: 150 GPH, for moderately modified trucks.
• Pressure: Preset at 8–10 psi; regulator adjustable up to 75 psi.
• Design: 4G quiet four-bearing pump.
• Plumbing: Suction connects to the factory frame-rail fitting; pressure side to the factory feed line.
• Made in USA: Per AirDog.

Fitment

• 2008–2010 Ford 6.4L Powerstroke Diesel
• Part Number: AirDog R4SBF221 (RP-4G-150)

Tech & Installation Notes

• In the Box: Raptor-4G pump, wiring harness, frame bracket set, spacer, hardware kit, 14 ft fuel line, quick-connect fittings, cable ties and service O-ring kit.
