6.7 Powerstroke Cold Side Intercooler Pipe | S&B 83-1001

Stop the factory cold-side CAC pipe before it bursts. S&B 83-1001 replaces the failure-prone OEM charge-air pipe on 2017–2026 6.7 Powerstroke Super Duty trucks with a 3.50-inch polished aluminum tube and a 5-ply aramid-reinforced silicone hose. The two-piece design is easier to install than the stock one-piece hose, flows more air, and uses heavy-duty spring-loaded T-bolt clamps. CARB EO D-590-49.

Key features

• Larger-than-stock 3.50-inch polished aluminum cold-side pipe
• 5-ply aramid-reinforced silicone hose
• Heavy-duty spring-loaded T-bolt clamps with 3/4-inch stainless band
• Two-piece design for easier install
• Less restriction and more airflow than the factory pipe
• Replaces the OEM pipe that is known to split under boost
• CARB EO D-590-49
• Million-mile S&B warranty

Fitment

• 2017–2026 Ford F-250 / F-350 6.7L Powerstroke
• 2017–2022 Ford F-450 / F-550 6.7L Powerstroke
• Fits stock and high-output 6.7 Powerstroke engines

2023+ cab-and-chassis trucks use S&B 83-1012. 2020–2024 F-250 / F-350 are 50-state compliant. 2025–2026 F-250 / F-350 are 49-state pending a CARB model-year update. No CARB EO for F-450 / F-550.

What’s in the box

• Polished aluminum cold-side intercooler pipe
• 5-ply silicone hose
• Spring-loaded T-bolt clamps
• O-ring
• CARB EO label

Notes & specs

• Brand/part number: S&B Filters 83-1001
• UPC: 841372039911
• Position: cold side (intercooler to engine)
• Pipe diameter: 3.50 inches
• Material: polished aluminum plus 5-ply aramid silicone

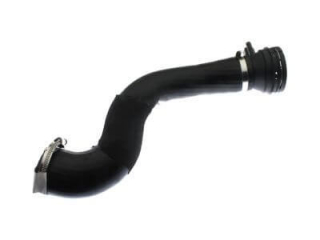

• Replaces: HC3Z-6F073-A, HC3Z-6F073-B, PC3Z-6F073-B
• CARB EO: D-590-49
• Warranty: million mile

Let the engine cool, cover open turbo and intercooler ports, and reuse the factory CAC temperature sensor. Torque the T-bolt clamps to spec and affix the CARB label under the hood. If the stock 2017–2026 6.7 Powerstroke cold-side pipe is swollen, leaking, or already burst, the S&B 83-1001 is the upgraded CAC pipe built to stay together.
