South Bend SDD3250-5K Street Dual Disc Clutch Kit with 1.375" Input Shaft Upgrade – 5.9 Cummins (1994-2004)

Give your 5.9 Cummins the holding power it deserves without sacrificing street manners. The South Bend SDD3250-5K Street Dual Disc Clutch Kit is engineered for 1994-2004 Dodge Ram 2500/3500 trucks with the NV4500 5-speed manual transmission (also compatible with non-HO NV5600 applications). This Stage 3/4 dual-disc upgrade delivers serious torque capacity while maintaining smooth, daily-drivable engagement.

At the heart of the kit is South Bend’s proven hybrid organic/ceramic disc design. Organic friction material faces the flywheel and pressure plate for smooth, progressive engagement and excellent low-speed drivability. Ceramic buttons on the opposing faces provide superior grip and heat resistance under load. The 13" dual-disc setup offers significantly better heat dissipation and torque-holding capability than a single-disc clutch.

The 3250 lb. diaphragm-style pressure plate delivers strong clamping force with a surprisingly light pedal effort, making this clutch comfortable for daily driving and extended towing. Dampened, sprung-hub discs with a free-travel design (inspired by heavy-duty semi-truck clutches) help reduce gear rollover noise and drivetrain shock when the clutch is disengaged.

This -5K version includes the essential 1.375" (1-3/8") upgraded input shaft kit. The factory 1.25" shaft is a known weak point that can twist or break under high torque — this upgrade eliminates that risk and is highly recommended for any modified or towing 5.9 Cummins.

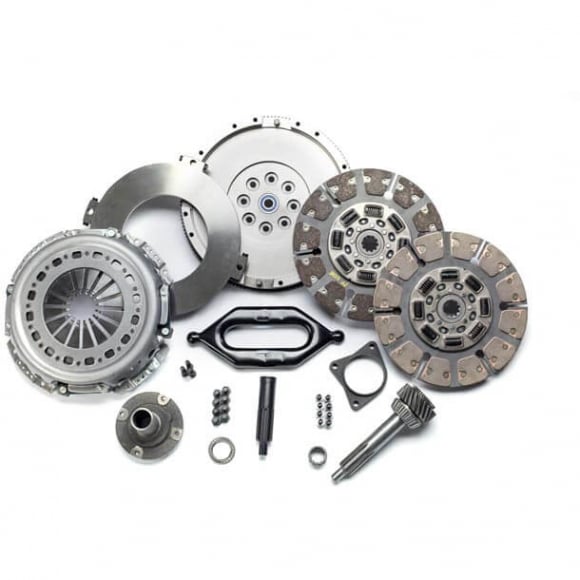

The complete kit includes:

• Dual organic/ceramic discs
• 3250 lb. diaphragm pressure plate
• Ductile iron flywheel
• Throwout bearing
• Pilot bushing
• Alignment tool
• 1.375" input shaft upgrade kit

Key Features & Benefits:

• Rated for up to 650 HP / 1,300 lb-ft torque
• 30,000+ lb towing capacity
• Hybrid organic/ceramic friction material for smooth street engagement + high-performance grip
• Includes upgraded 1.375" input shaft (critical strength upgrade)
• 3250 lb. diaphragm pressure plate – strong clamp load with manageable pedal feel
• Dampened free-travel disc design reduces gear rollover noise
• Excellent heat dissipation from dual-disc construction
• Complete installation kit with flywheel, TO bearing, and alignment tool
• Made in the USA by South Bend Clutch

Fitment: 1994–2004 Dodge Ram 5.9L Cummins with NV4500 5-speed manual transmission. Also fits select non-HO NV5600 applications. Verify your transmission before ordering.

Important Notes: This clutch is designed for street, towing, and performance use. It is not intended for competition applications such as sled pulling.

This is one of the best-balanced “street dual disc” options available for the 5.9 Cummins — strong enough for serious power and heavy towing, yet still pleasant to drive every day.
