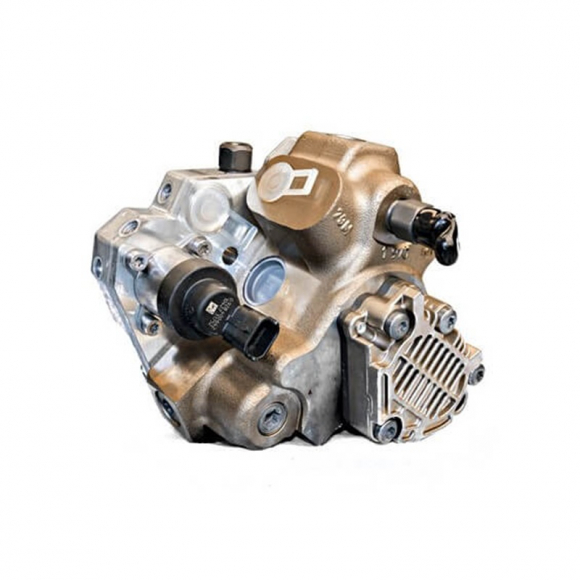

Thumbnail Filmstrip of 2001-2010 Duramax GM S&S Diesel Motorsport 10mm Stroker CP3 Pump CP3-DMX-10 Images
Engineered specifically for street performance and towing 2001 through 2010 Chevrolet Silverado and GMC Sierra 2500HD/3500 trucks powered by the 6.6L Duramax V8 turbo diesel engine (LB7, LLY, LBZ, and LMM platforms), the S&S Diesel Motorsport 10mm Stroker CP3 High-Pressure Pump (Part # CP3-DMX-10) provides exceptional volume increases over stock without requiring complex tuning calibrations.
Constructed from brand-new, latest-generation Bosch CP3NH base cores, this 10mm stroker pump delivers a peak output of 353 L/Hr at 5,000 RPM (providing 1,325 mm³/rev displacement). Each unit is fully bench-tested and ships with an included factory calibration data sheet. Operating as a brand-new outright high-pressure pump requiring no core deposit, it represents an ideal upgrade for 500 to 800 horsepower builds.
Key Features & Benefits
- Optimized 1,325 mm³/rev Displacement: Delivers substantial volume gains over stock to easily support fueling up to 800 horsepower.
- Latest-Generation Bosch CP3NH Base: Built upon authentic new Bosch casting bases for maximum durability and thermal stability.
- Direct Drop-In Installation: Engineered for straightforward installation without mandatory complex custom tuning calibration adjustments (aside from standard 2001-2005 LB7/LLY requirements).
- Included Flow Data Sheet: Each pump is fully tested on a flow bench and ships with a dedicated performance data sheet.
- Zero Core Charge: Brand-new outright high-pressure pump requiring no core deposit or core return shipping.
Technical Specifications
- Manufacturer / Brand: S&S Diesel Motorsport
- Manufacturer Part Number / SKU: CP3-DMX-10
- Product Type: High-Pressure Common Rail 10mm Stroker CP3 Injection Pump
- Pump Displacement: 1,325 mm³ / revolution
- Supported Power Output: Up to 800 RWHP (Single Pump Configuration)
- Core Requirement: None
- Warranty: S&S Diesel Motorsport 2-Year Limited Warranty
Vehicle Fitment & Technical Installation Notes
- 2001–2004 GM 2500HD / 3500 Duramax 6.6L (LB7 – requires custom tuning)
- 2004.5–2005 GM 2500HD / 3500 Duramax 6.6L (LLY – requires custom tuning)
- 2006–2007 GM 2500HD / 3500 Duramax 6.6L (LBZ Classic)
- 2007.5–2010 GM 2500HD / 3500 Duramax 6.6L (LMM)
- Installation Tip: Pair the S&S 10mm pump with an aftermarket lift pump system (150 GPH or higher) to ensure uninterrupted fuel supply volume and prevent pump starvation under heavy load.
