Thumbnail Filmstrip of 2011-2024 6.7L Powerstroke Gear Reduction Starter XDP XD254 Images

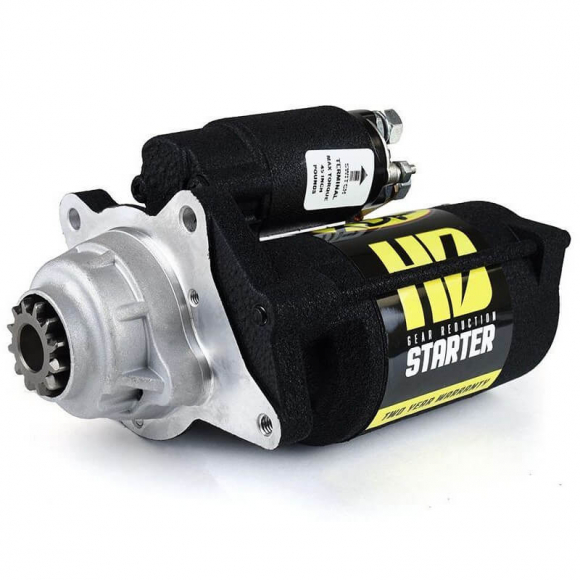

Introducing the XDP XD254 Wrinkle Black Gear Reduction Starter. This starter is designed for increased durability and performance, with a gear reduction design and a wrinkle black finish. The smaller motor is faster and more efficient, drawing less amperage for better starting power. This starter is the perfect upgrade for your 6.7 Powerstroke 2011-2021.
Tech Notes: Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws. This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 9.5V DC. Starter heat shields are not required, but are an excellent idea for heat protection
DETAILS:
- 4.0 HP
- 3.0 KW
- 275 Ft-Lbs. Torque
- 4.75:1 Gear Reduction
- 3.0 KW
- 275 Ft-Lbs. Torque
- 4.75:1 Gear Reduction
Tech Notes: Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws. This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 9.5V DC. Starter heat shields are not required, but are an excellent idea for heat protection
Introducing the XDP XD254 Wrinkle Black Gear Reduction Starter. This starter is designed for increased durability and performance, with a gear reduction design and a wrinkle black finish. The smaller motor is faster and more efficient, drawing less amperage for better starting power. This starter is the perfect upgrade for your 6.7 Powerstroke 2011-2021.
DETAILS:
- 4.0 HP
- 3.0 KW
- 275 Ft-Lbs. Torque
- 4.75:1 Gear Reduction
Tech Notes: Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws. This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 9.5V DC. Starter heat shields are not required, but are an excellent idea for heat pro[...]
Introducing the XDP XD254 Wrinkle Black Gear Reduction Starter. This starter is designed for increased durability and performance, with a gear reduction design and a wrinkle black finish. The smaller motor is faster and more efficient, drawing less amperage for better starting power. This starter is the perfect upgrade for your 6.7 Powerstroke 2011-2021.
Tech Notes: Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws. This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 9.5V DC. Starter heat shields are not required, but are an excellent idea for heat protection
DETAILS:
- 4.0 HP
- 3.0 KW
- 275 Ft-Lbs. Torque
- 4.75:1 Gear Reduction
- 3.0 KW
- 275 Ft-Lbs. Torque
- 4.75:1 Gear Reduction
Tech Notes: Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws. This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 9.5V DC. Starter heat shields are not required, but are an excellent idea for heat protection
Fits: 6.7 Powerstroke 2011-2016
Fits: 6.7 Powerstroke 2011-2022
Fits: 6.7 Powerstroke 2011-2016
