Restore proper injection control on your 6.0L Powerstroke.

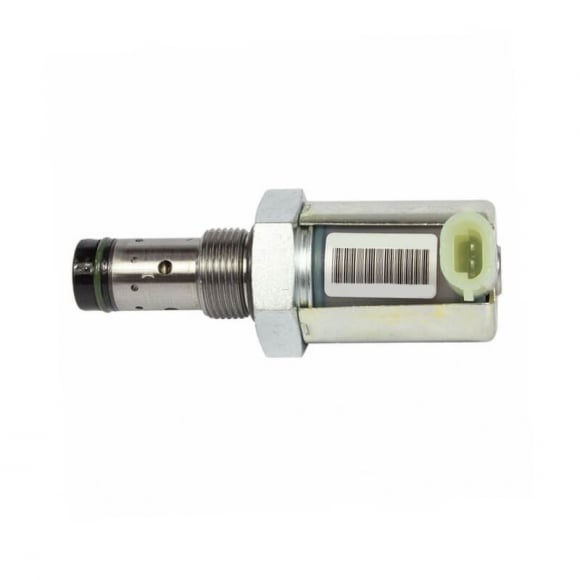

The Grizzly GA33417 Injection Pressure Regulator (IPR) Valve is a direct replacement for the Ford 6.0L Powerstroke. It's designed to meet or exceed OEM specifications for consistent performance and reliable fuel system operation, and it installs without any modifications.

What the IPR valve does.

The 6.0L Powerstroke uses high-pressure engine oil to fire its injectors. The IPR valve regulates that oil pressure, which controls injector operation. When the IPR valve wears, sticks or leaks, the injectors can't get the pressure they need, and drivability suffers quickly.

Built to a high standard.

Grizzly Products builds diesel engine components for modern diesel engines. Its products go through stringent recertification methods and use high-quality replacement parts, resulting in a durable product line that shops and owners can trust.

Key Features

• Direct-fit replacement IPR valve
• Installs without modifications
• Designed to meet or exceed OEM specifications
• Regulates high-pressure oil to control injector operation
• Helps optimize performance, efficiency and emissions
• Fits 2004.5–2007 Ford 6.0L Powerstroke

What Problem Does This Solve?

• Hard starts and no-starts. A failing IPR valve can prevent the high-pressure oil system from building enough pressure to fire the injectors, causing long cranking times or a no-start.
• Stalling and poor running. When the IPR valve can't hold steady pressure, the engine may stall, idle roughly or run poorly.
• Low power. Without proper oil pressure control, the injectors can't deliver full fuel, leaving the truck sluggish and down on power.

Leaking, Not Failed?

If your IPR valve is only leaking externally, you may not need a full replacement. The Grizzly IPR Valve Seal Kit (GA30035) includes the seals needed to reseal a leaking 2003–2007 6.0L IPR valve and restore proper pressure, at a fraction of the cost.

Fitment

Early and late 6.0L Powerstroke engines use different IPR valves. Check the part number on your existing valve or your engine build date before ordering.
