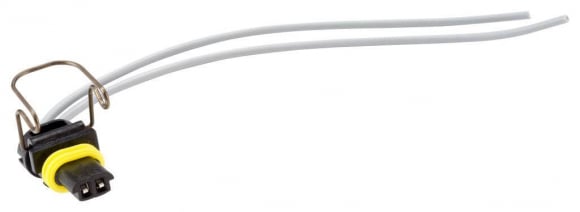

The Alliant Power AP0068 is a 2 wire electrical pigtail used across Ford Powerstroke, GM Duramax and Navistar engines. It replaces a cracked, corroded or oil-soaked factory connector without replacing the whole harness.

Alliant lists it for ICP sensors, EBP sensors, IPR valves and VGT solenoids, depending on the engine. On the 7.3L it is a common fix for an ICP connector that has filled with oil.

• Two Wire Pigtail: Replaces the factory 2 pin connector.
• Multiple Uses: ICP, EBP, IPR and VGT connectors, by application.
• Splice In Repair: Fix the plug without a new harness.
• Alliant Quality: Built to OE specification by Alliant Power.
• Cross Platform: Ford, GM Duramax and Navistar applications.

Technical Specifications

• Part Number: AP0068
• Manufacturer: Alliant Power
• Type: 2 wire electrical pigtail
• Not Included: Sensor or solenoid
• Warranty: 24 months, unlimited miles (Alliant Power)

Vehicle Fitment & Technical Installation Notes

• Fitment: 1994-2020 Ford Powerstroke where this 2 wire connector is used, plus listed Duramax and Navistar applications.
• Installation Tip: Cut the old connector one wire at a time so you cannot cross the wires, then solder and heat shrink each splice instead of using crimp butt connectors in the oil and heat.
