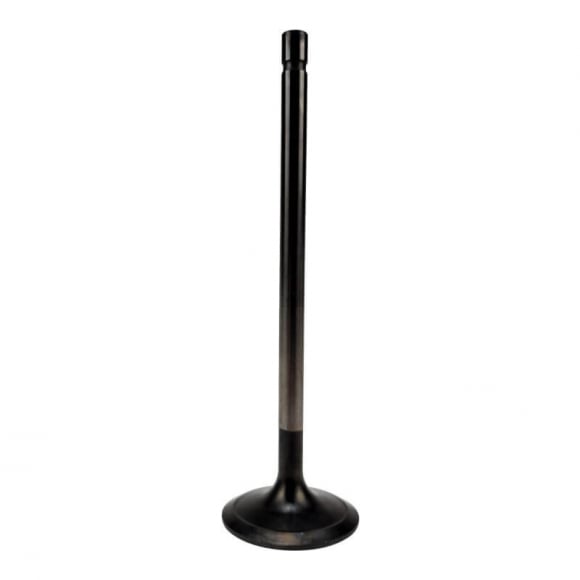

6.0 Powerstroke Nitride Race Exhaust Valve — SBI 02180R

SBI 02180R nitride race exhaust valve for 2003–2010 6.0L Powerstroke. Bimetallic stainless construction with a full nitride coating and 50 HRc hardened tip, built to handle high exhaust temperature and load. Direct-fit 1.102" head, 5.058" length, 37.5° seat. For street performance, towing, and race use. Sold each; 16 required per engine.

Features

• Performance / race-series exhaust valve
• Austenitic stainless head with high-chromium steel stem
• Fully machined and nitrided (black satin finish)
• Hardened tip, 50 HRc minimum
• Stock-size geometry for a direct fit
• Sold each (16 per engine)

Specifications

• Brand / PN: SBI 02180R
• Head diameter: 1.102"
• Overall length: 5.058"
• Stem diameter: 0.2737"
• Stem type: 1G
• Seat angle: 37.5°
• Tip length: 0.317"
• Finish: Nitrided (NR)

Fitment

• 2003–2007 Ford 6.0L Powerstroke F-Series
• 2003–2005 Ford Excursion 6.0L Powerstroke
• 2004.5–2010 Ford 6.0L Powerstroke E-Series
• Other 6.0 Powerstroke applications using the 1.102" exhaust valve
