Thumbnail Filmstrip of 2013-2018 6.7L Cummins Holset Reman Turbo Actuator 6382096HX Images

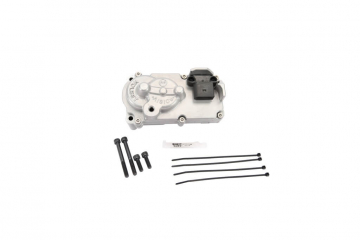

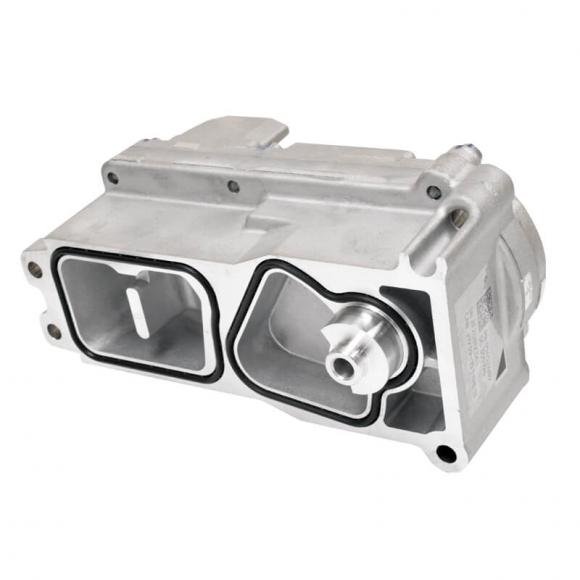

The electronic actuator is a common failure on the HE300VG turbo of a 2013–2018 Ram 6.7L Cummins. When it quits, the vanes stop responding, with low boost, a weak exhaust brake, derate and actuator codes. Replace it with the Holset 6382096HX, a genuine Holset remanufactured actuator, instead of buying a whole turbo.
- Genuine Holset reman: Remanufactured by Holset, the company that builds the factory HE300VG, for factory vane control and exhaust braking.
- Part numbers: Holset 6382096HX, superseding 5579127HX. Replaces 6382096, 5579127 and Mopar 68481772AA / R8481772AA.
- Fitment: 2013–2018 Ram 2500, 3500, 4500 and 5500 with the 6.7L inline-six Cummins and the Holset HE300VG turbo.
- Calibration required: The actuator must be calibrated to the turbo at install with a scan tool that runs the VGT actuator pre-align and self-calibrate procedure, such as Cummins INSITE or Holset ETool. An incomplete calibration can set P003A.
- Before you install: Drain the cooling system first, and check that the turbo sector gear moves the vanes freely in both directions.
- Not included: Turbocharger.
Order today to get full boost control back.
The electronic actuator is a common failure on the HE300VG turbo of a 2013–2018 Ram 6.7L Cummins. When it quits, the vanes stop responding, with low boost, a weak exhaust brake, derate and actuator codes. Replace it with the Holset 6382096HX, a genuine Holset remanufactured actuator, instead of buying a whole turbo.
Genuine Holset reman: Remanufactured by Holset, the company that builds the factory HE300VG, for factory vane control and exhaust braking.
Part numbers: Holset 6382096HX, superseding 5579127HX. Replaces 6382096, 5579127 and Mopar 68481772AA / R8481772AA.
Fitment: 2013–2018 Ram 2500, 3500, 4500 and 5500 with the 6.7L inline-six Cummins and the Holset HE300VG turbo.
Calibration required: The actuator must be calibrated to the turbo at install with a scan tool that runs the VGT actuator pre-align and self-calibrate procedure, such as Cummins INSITE or Holset ETool. An incomplete calibration can set P003A.
Before you install: Drain the cooling system first, and check that the turbo sector gear moves the vanes freely in both directions.
Not included: Turbocharger.
Order today to get full boost control back.[...]
The electronic actuator is a common failure on the HE300VG turbo of a 2013–2018 Ram 6.7L Cummins. When it quits, the vanes stop responding, with low boost, a weak exhaust brake, derate and actuator codes. Replace it with the Holset 6382096HX, a genuine Holset remanufactured actuator, instead of buying a whole turbo.
- Genuine Holset reman: Remanufactured by Holset, the company that builds the factory HE300VG, for factory vane control and exhaust braking.
- Part numbers: Holset 6382096HX, superseding 5579127HX. Replaces 6382096, 5579127 and Mopar 68481772AA / R8481772AA.
- Fitment: 2013–2018 Ram 2500, 3500, 4500 and 5500 with the 6.7L inline-six Cummins and the Holset HE300VG turbo.
- Calibration required: The actuator must be calibrated to the turbo at install with a scan tool that runs the VGT actuator pre-align and self-calibrate procedure, such as Cummins INSITE or Holset ETool. An incomplete calibration can set P003A.
- Before you install: Drain the cooling system first, and check that the turbo sector gear moves the vanes freely in both directions.
- Not included: Turbocharger.
Order today to get full boost control back.
Fits: 6.7 Cummins 2007.5-2018
