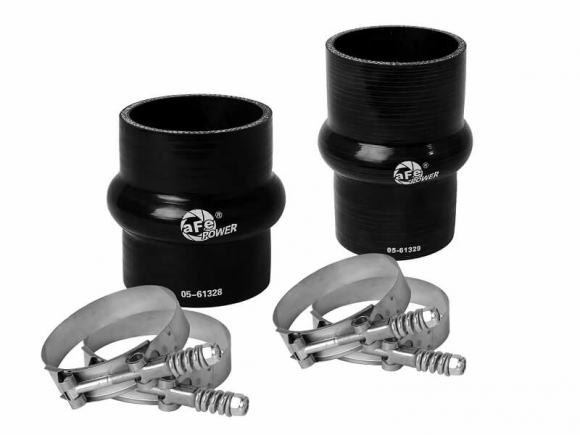

aFe BladeRunner OER Series Hot Side Coupling and Clamp Kit 46-20070SSH for 2008–2010 Ford 6.4L Powerstroke

This kit replaces the factory couplers on the hot-side charge pipe at the turbo and intercooler. Hump couplings allow for expansion, movement and vibration between the hard pipes.

Key Benefits & Features

• Locations: Hot-side charge pipe to turbo, and hot-side charge pipe to intercooler inlet.
• Material: 5-ply polyester-reinforced high-temperature silicone.
• Couplings: 3 in. x 4 in. hump coupling and 3.25 in. x 3 in. x 5.5 in. hump reducer, both with internal bead.
• Clamps: Three stainless spring-loaded T-bolt clamps.

Fitment

• 2008–2010 Ford F-250 and F-350 Super Duty 6.4L Powerstroke Diesel
• Part Number: aFe 46-20070SSH

Tech & Installation Notes

• Fitment Note: Fits only the factory hot-side charge pipe and factory intercooler.
• After Install: Recheck all connections after the first 50–100 miles.
