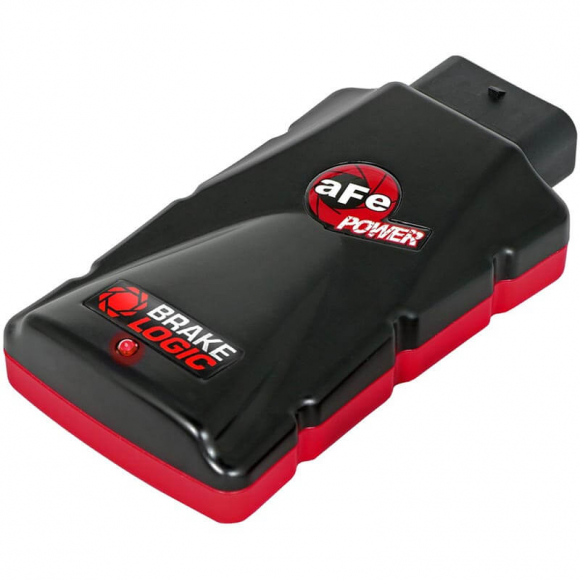

aFe 77-63001 BrakeLogic Exhaust Brake Control Module for 2008–2010 Ford 6.4L Powerstroke

BrakeLogic uses the factory variable-geometry turbo as the exhaust brake, so no separate exhaust brake valve is needed. It electronically closes the turbo vanes and commands transmission downshifts to help hold speed on descents while towing or hauling.

Key Benefits & Features

• Output: Up to 130 retarding hp and up to 70 psi exhaust back pressure, per aFe.
• Operation: Turn it on with the factory Tow/Haul button, tap the brake to engage, and press the throttle to release.
• Install: Plugs into the turbo actuator and master cylinder pressure switch connectors; one posi-tap on the brake pedal wire.
• Includes: Module, harness, Velcro and cable ties.
• Transmission: aFe recommends it for automatic transmissions.

Fitment

• 2008–2010 Ford F-250, F-350, F-450, F-550 Super Duty 6.4L Powerstroke Diesel
• Part Number: aFe 77-63001
