Ford 1994–2019 F-450 / F-550 LoadLifter 5000 Helper Spring Kit | Air Lift 57345

Keep a commercial Super Duty chassis level when the body, equipment, or trailer load gets heavy. The Air Lift LoadLifter 5000 kit (part #57345) is a rear helper spring kit for 1994–2019 Ford F-450 and F-550 cab-and-chassis trucks. It adds up to 5,000 lbs of adjustable load-leveling capacity so the truck stays more stable, with less sag, sway, and bottoming out. These air springs work with the factory leaf springs, not instead of them, so you can add support when loaded and ease pressure off when empty. Air pressure is fully adjustable from 5–100 PSI.

Key features

• Rear LoadLifter 5000 helper springs for commercial chassis trucks
• Up to 5,000 lbs of load-leveling capacity (never exceed the truck’s GVWR)
• Adjustable from 5–100 PSI for empty, partial, or max-load conditions
• 2-ply fabric-reinforced rubber bellows built like a tire
• Exclusive upper and lower roll plates protect the bags and help increase capacity
• Corrosion-proof nylon composite end caps that are steel-strong, lighter, and rust-free
• Quick-connect air fittings with included air line and Schrader valve
• Improves ride height, braking, and steering control under load
• Limited lifetime warranty

Fitment

• 1994–2019 Ford F-450 Super Duty cab & chassis 2WD and 4WD
• 1994–2019 Ford F-550 Super Duty cab & chassis 2WD and 4WD
• Rear axle / factory leaf springs
• Commercial cab-and-chassis applications

Requires 9 inches of clearance between the tire and frame. Does not fit pickup-bed F-450 models. Confirm chassis type and tire-to-frame clearance before ordering.

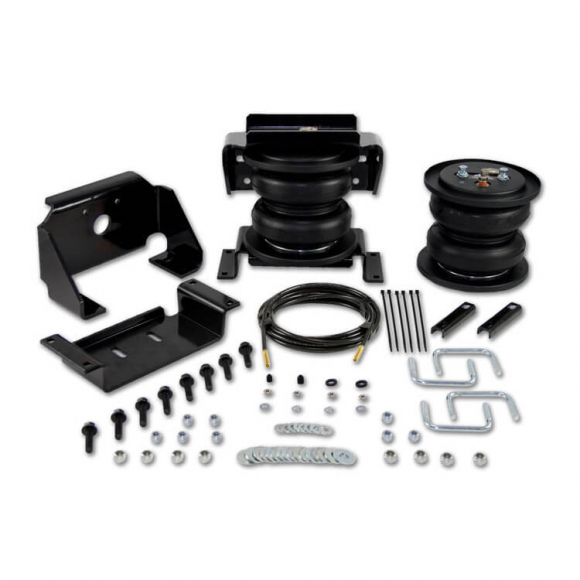

What’s in the box

• Pair of LoadLifter 5000 air springs
• Upper and lower roll plates
• Vehicle-specific mounting brackets and hardware
• Air line, fittings, and Schrader fill valve
• Illustrated installation manual

Notes & specs

• Compressor, in-cab gauges, and wireless controllers are not included
• Pair this kit with an Air Lift WirelessONE, LoadController, or similar onboard air system if you want to adjust pressure from the cab
• Brand/part number: Air Lift LoadLifter 5000 57345
• UPC: 729199573453
• Position: rear
• Capacity: up to 5,000 lbs
• Pressure range: 5–100 PSI
• Mount: rear leaf-spring helper kit
• Clearance required: 9 inches between tire and frame
• Drilling: may be required depending on application
• Install time: about 2–4 hours
• Replacement spring: Air Lift 50229
• Kit weight: about 45 lbs
• Warranty: limited lifetime

Route the included air line to a convenient fill point at the frame, bumper, or body. Always set pressure for the load you are carrying and do not exceed the vehicle manufacturer’s GVWR. If your 1994–2019 F-450 or F-550 cab-and-chassis truck squats under equipment, a service body, or a trailer, the Air Lift 57345 LoadLifter 5000 kit adds 5,000 lbs of adjustable rear support built for commercial Super Duty use.
