Old turbo studs stretch and break, and reused gaskets leak boost and exhaust. Replace them with the BD 1045984 mounting kit any time the turbo comes off. It fits 1994-2007 Dodge Ram 2500 and 3500 with the 5.9L Cummins, 12 valve, 24 valve and common rail.

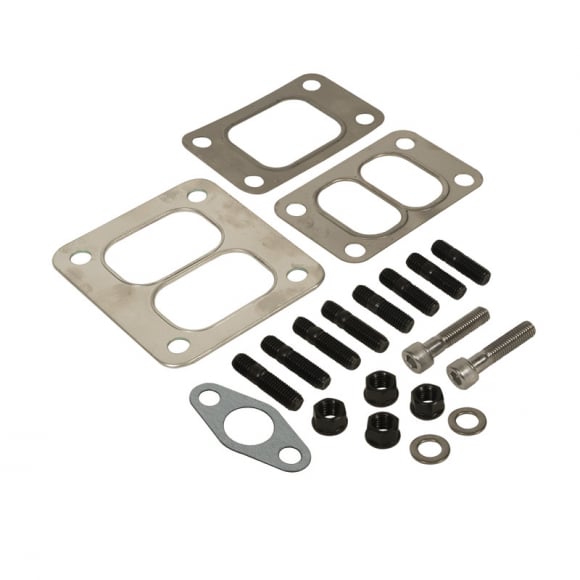

Gaskets: T3 split, T3 open and T4 split turbo gaskets, plus the oil drain gasket. No core charge applies to this part.

Key Features & Benefits

• Fasteners: Four M10 x 26 mm and four M10 x 30 mm studs, four M10 flange nuts, two washers and two M10 x 45 mm stainless socket head screws, Class 8.8 or better.
• Turbos: Covers HX, HY, S300 and S400 turbos on T3 or T4 flanges.

Technical Specifications

• Manufacturer/Brand: BD Diesel
• Part Number/SKU: 1045984 (bdd1045984)
• Product Type: Turbocharger Mounting Kit
• Truck Compatibility: 1994-2007 Dodge Ram 2500 and 3500 with the 5.9L Cummins, 12 valve, 24 valve and common rail
• Engine Platform: 5.9L Cummins
• Core Requirement: No core required
• Warranty: 90 days

Vehicle Fitment & Technical Installation Notes

Fits 1994-2007 Dodge Ram 2500 and 3500 with the 5.9L Cummins, 12 valve, 24 valve and common rail.

Installation Tip: Confirm whether your manifold is a T3 or T4 flange.
