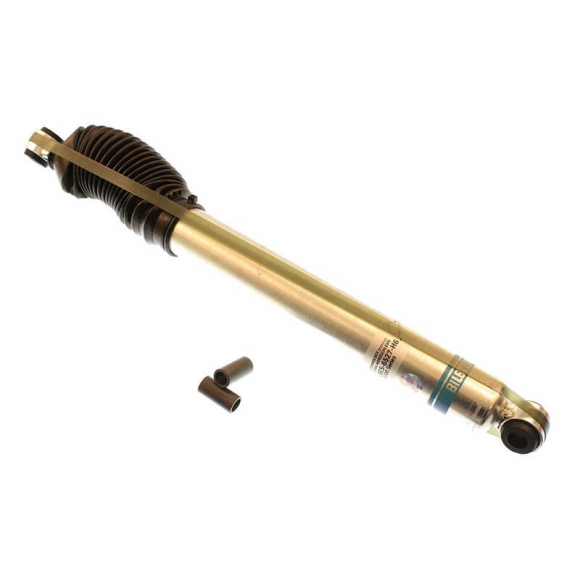

Bilstein B8 5100 Series Rear Shock Absorber – 24-065276

Upgrade the rear suspension on your Ford Super Duty or classic Ford truck with the Bilstein B8 5100 Series Shock Absorber (part #24-065276). Designed specifically for lifted trucks, this monotube shock delivers superior damping control for heavy hauling, towing, and off-road use while providing a comfortable, controlled ride on the street.

Key Features

• 46mm digressive piston with self-adjusting deflective disc valving for excellent control and comfort across varying conditions
• Monotube gas-pressurized design for consistent, fade-free performance and better heat dissipation than twin-tube shocks
• Zinc-plated finish for superior corrosion resistance
• Black bellows dust boot included to protect the shaft
• Vehicle-specific valving tuned for Ford truck applications
• Direct bolt-on installation with eye-to-eye mounts
• Limited lifetime warranty

Specifications

• Position: Rear
• Body Design: Smooth body (non-coilover)
• Collapsed Length: 17.01"
• Extended Length: 28.01"
• Travel: 11.00"
• Upper/Lower Mount: Eye 16mm
• Piston Diameter: 46mm
• Sold individually (2 required per vehicle)

Primary Fitment

• 1994–1997 Ford F-250 2WD — Rear, for (3–4" lift)
• 1994–1995 Ford F-350 2WD — Rear, for (3–4" lift)
• 1999–2016 Ford F-250 Super Duty 2WD – Rear (0–1" lift)
• 1999–2016 Ford F-350 Super Duty 2WD – Rear (0–1" lift)

Also fits select earlier Ford F-150, F-250, F-350, and Ranger applications with various rear lift heights.

Ideal for Powerstroke diesel owners who want improved ride quality, better handling under load, and long-term durability.
