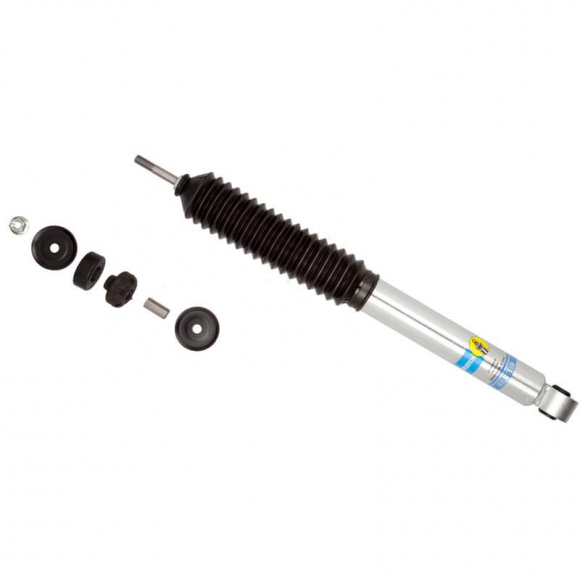

Bilstein B8 5100 Series Front Shock Absorber — 24-268639
For 2014–2025 Ram 2500 4WD with 2–2.5" front lift
Upgrade the front suspension on your lifted Ram 2500 with a shock built for extra ride height, larger tires, and mixed on-road / off-road use. The Bilstein B8 5100 (part 24-268639) is a vehicle-tuned monotube shock that replaces the factory front damper on 4WD trucks already lifted 2–2.5". It does not add lift on its own — it is sized and valved for that lift range.
Why it works on a lifted 2500
Stock shocks fade and feel loose once you add a leveling kit, coil spacers, or a small lift. The 5100 uses a nitrogen-charged monotube body and a 46 mm velocity-sensitive digressive piston so damping stays consistent instead of going soft after heat or repeated hits. That means better control over washboard, potholes, and highway expansion joints, plus more confidence with heavier tires.
Key features
- Monotube, gas-charged design for fade-free damping
- 46 mm digressive piston that reacts quickly to changing surface speeds
- Application-specific valving for 2014–2025 Ram 2500 4WD front
- Zinc-plated body with clear coat for rust and corrosion resistance
- 14 mm hardened, chromed shaft
- Direct-fit mounts: stem upper, 14.1 mm eye lower
- Black bellows dust boot included
- Sold individually (order two for a complete front pair)
Fitment
- Years: 2014–2025 Ram 2500
- Drive: 4WD only
- Position: Front (driver or passenger)
- Lift: 2.0"–2.5" front lift (leveling kits, spacers, or matching coil springs)
- Not for: Stock-height trucks, 2WD, or lifts outside the 2–2.5" range
Because aftermarket kits vary, measure collapsed/extended length or confirm your current shock travel before ordering.
Specs
- Part number: 24-268639
- Series: Bilstein B8 5100
- Collapsed length: 15.03" (382 mm)
- Extended length: 22.63" (575 mm)
- Stroke: 7.50"
- Body: 2.0" smooth, non-coilover
- Piston: 46 mm
- Shaft: 14 mm
- Finish: Zinc plated
- Boot: Black bellows
- Damping: Non-adjustable
- Warranty: Limited lifetime
Direct bolt-on using the factory shock mounts and spring assembly. Hardware and boot are included; no cutting or fabrication required for a correct-fit lift.
