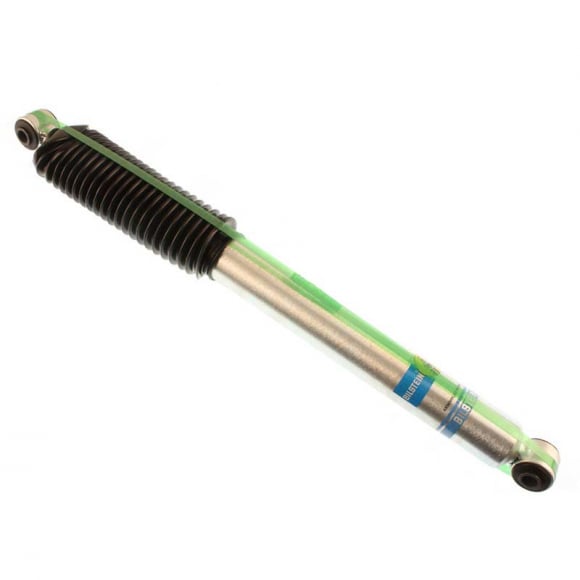

Bilstein B8 5100 Series Rear Shock Absorber — 24-218030
For 2011–2025 Chevy Silverado / GMC Sierra 2500HD & 3500HD Duramax (3–4" rear lift)

Upgrade the rear of your lifted Duramax with the shock built for heavy-duty trucks. The Bilstein 24-218030 B8 5100 is a direct-fit monotube shock engineered for 2011–2025 Silverado and Sierra 2500HD/3500HD models with 3–4 inches of rear lift. It delivers fade-free control on the highway, under a load, and off-road—without the harshness common on many lifted HD trucks.

Stock-length shocks can’t keep up once you add lift, larger tires, and extra weight. This 5100 is valved and sized specifically for that geometry. The 46mm monotube, high-pressure gas design dissipates heat better than twin-tube shocks, so damping stays consistent on long hauls or washboard roads. Bilstein’s velocity-sensitive digressive piston reacts instantly to small bumps and bigger hits, giving you more control when towing and a more planted feel day to day.

Key features

• Application-tuned for 2011–2025 GM 2500HD/3500HD with 3–4" rear lift (2WD and 4WD)
• 46mm monotube, gas-charged design for consistent, fade-free performance
• Patented digressive valving for comfort on-road and control off-road
• Zinc-plated body with protective coating for corrosion resistance
• Smooth-body, non-coilover construction with eye-to-eye 14.4 mm mounts
• Black bellows boot included
• Sold individually (order two for a complete rear pair)
• Limited lifetime warranty

Specifications
Position: Rear Lift range: 3–4" rear (verify measurement; aftermarket kits vary) Collapsed length: 18.17" (461.5 mm) Extended length: 29.92" (760 mm) Stroke: 11.75" Body / piston: 46 mm monotube, smooth body Finish: Zinc plated Reservoir: None Mounts: Eye 14.4 mm (upper and lower) Quantity: 1 (2 required per vehicle)

Confirm your rear lift height and measure extended/collapsed length before ordering. This shock is not intended for stock-height trucks.

Pair it with matching 5100 fronts for a complete, balanced upgrade on your LML or L5P Duramax. Direct bolt-on install—no welding or custom fabrication required.
