Bilstein F4-SE5-C765-H0 (B8 5112 Series)

Level out your 2005-2016 Powerstroke Super Duty and improve handling with the Bilstein B8 5112 Series High Performance Front Leveling Kit (F4-SE5-C765-H0).

This complete front kit raises the front of your truck approximately 2–2.25 inches to correct the factory rake, giving your F-250 or F-350 a more aggressive, level stance while increasing ground clearance and wheel travel. It includes a matched pair of Bilstein progressive-rate coil springs and a pair of Bilstein B8 5100 Series monotube shocks specifically tuned for lifted applications.

Unlike basic spacer kits, this system replaces the worn factory springs and shocks with properly matched components. The result is better control, reduced body roll, improved ride quality on- and off-road, and the ability to clear larger tires (typically up to 34–35" with minor trimming in many cases).

Key Benefits

• Raises front end ~2–2.25" for a level stance and more aggressive look
• Increases suspension and wheel travel for better performance
• Bilstein 5100 Series monotube shocks with digressive valving for consistent, fade-resistant damping
• Matched coil springs engineered for the application
• Smooth, controlled ride both on-road and off-road
• Direct bolt-on installation with no major modifications required
• Limited Lifetime Warranty

Fitment
2005–2016 Ford F-250 / F-350 Super Duty 4WD (Powerstroke diesel models: 6.0L, 6.4L, and 6.7L).
4WD only. Adjustable track bar is recommended for best alignment and performance. Heavy aftermarket front bumpers, winches, or other accessories can reduce the final lift height.

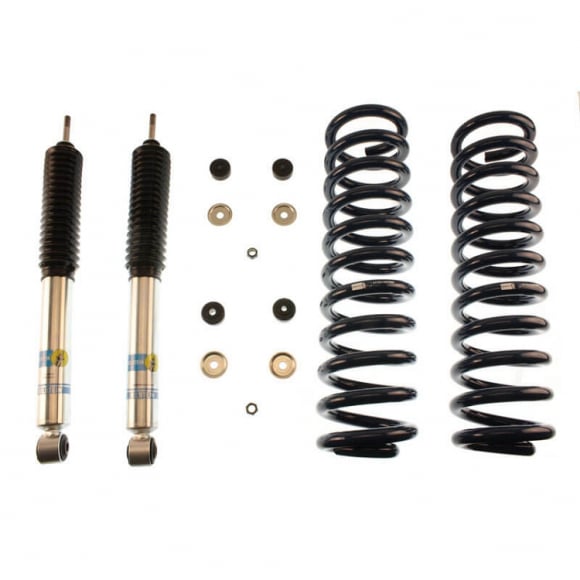

Kit Includes
(2) Bilstein matched front coil springs
(2) Bilstein B8 5100 Series front shocks

Upgrade your Super Duty’s front suspension with proven Bilstein performance and get the leveled stance, improved handling, and ride quality your Powerstroke deserves.
