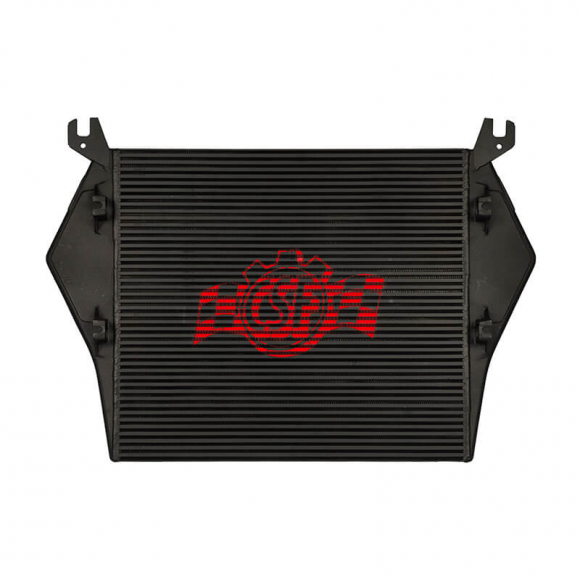

The stock 2003-2009 Ram intercooler tanks crack and the thin core heat-soaks under tow. Upgrade with the CSF 7104. Cast aluminum tanks and a bar-and-plate core are pressure-tested at 120 psi for these Cummins trucks.
- Build: Heavy-duty bar-and-plate core, cast aluminum end tanks, TIG welded, with the factory-style inlet and outlet.
- Test: CSF pressure-tests this bar-and-plate core at 120 psi and finishes the exterior in thermal-rejection powder coat.
- Part number: CSF 7104 crosses OEM 55057092AA and 5170704AJ.
- Fitment: 2003-2009 Ram 2500 5.9L, 2007-2009 Ram 2500 6.7L, 2003-2008 Ram 3500 5.9L, 2007-2009 Ram 3500 6.7L, and 2008-2010 Ram 4500 and 5500 6.7L.
- Does not fit: A 2009 Ram 3500 5.9L does not exist on this list, and 2010-up 2500 and 3500 trucks use CSF 7100. The 1-1/4 inch tube-and-fin unit is CSF 6009 and the 2-inch unit is CSF 6072.
- Not in the box: Boots, hoses, and clamps are not included.
- Warranty: CSF lists a 2-year limited warranty for the original owner. The term is on the warranty card in the box.
Order today to secure your replacement. Match the cab, the engine, and the year band above before you order. A 3500 5.9L stops at 2008.
The stock 2003-2009 Ram intercooler tanks crack and the thin core heat-soaks under tow. Upgrade with the CSF 7104. Cast aluminum tanks and a bar-and-plate core are pressure-tested at 120 psi for these Cummins trucks.
Build: Heavy-duty bar-and-plate core, cast aluminum end tanks, TIG welded, with the factory-style inlet and outlet.
Test: CSF pressure-tests this bar-and-plate core at 120 psi and finishes the exterior in thermal-rejection powder coat.
Part number: CSF 7104 crosses OEM 55057092AA and 5170704AJ.
Fitment: 2003-2009 Ram 2500 5.9L, 2007-2009 Ram 2500 6.7L, 2003-2008 Ram 3500 5.9L, 2007-2009 Ram 3500 6.7L, and 2008-2010 Ram 4500 and 5500 6.7L.
Does not fit: A 2009 Ram 3500 5.9L does not exist on this list, and 2010-up 2500 and 3500 trucks use CSF 7100. The 1-1/4 inch tube-and-fin unit is CSF 6009 and the 2-inch unit is CSF 6072.
Not in the box: Boots, hoses, and clamps are not included.
Warranty: CSF lists a 2-year limited warranty for the original owner. The term is on the warranty card in the box.
Order today to secure your replacement. Match the cab, the engine, and the year band above before you order. A 3500 5.9L stops at 2008.[...]
The stock 2003-2009 Ram intercooler tanks crack and the thin core heat-soaks under tow. Upgrade with the CSF 7104. Cast aluminum tanks and a bar-and-plate core are pressure-tested at 120 psi for these Cummins trucks.
- Build: Heavy-duty bar-and-plate core, cast aluminum end tanks, TIG welded, with the factory-style inlet and outlet.
- Test: CSF pressure-tests this bar-and-plate core at 120 psi and finishes the exterior in thermal-rejection powder coat.
- Part number: CSF 7104 crosses OEM 55057092AA and 5170704AJ.
- Fitment: 2003-2009 Ram 2500 5.9L, 2007-2009 Ram 2500 6.7L, 2003-2008 Ram 3500 5.9L, 2007-2009 Ram 3500 6.7L, and 2008-2010 Ram 4500 and 5500 6.7L.
- Does not fit: A 2009 Ram 3500 5.9L does not exist on this list, and 2010-up 2500 and 3500 trucks use CSF 7100. The 1-1/4 inch tube-and-fin unit is CSF 6009 and the 2-inch unit is CSF 6072.
- Not in the box: Boots, hoses, and clamps are not included.
- Warranty: CSF lists a 2-year limited warranty for the original owner. The term is on the warranty card in the box.
Order today to secure your replacement. Match the cab, the engine, and the year band above before you order. A 3500 5.9L stops at 2008.
Fits: 5.9 Cummins 2003-2007
Fits: 5.9 Cummins 2003-2007
California Restricted
Fits: 5.9 Cummins 2003-2007
California Restricted
Fits: 5.9 Cummins 2003-2007
California Restricted
Fits: 5.9/6.7 Cummins 2003-2009
