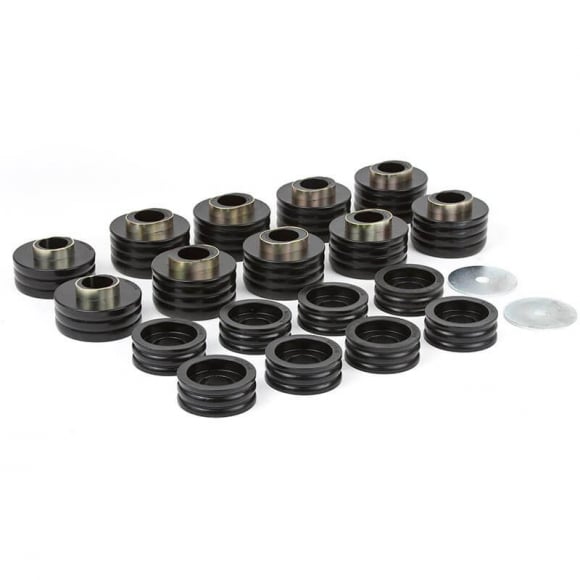

Replace the rubber cab mounts on a 1999-2016 Ford F-250 or F-350 Super Duty before the cab sags and the doors quit closing square. Factory rubber cracks, packs down, and lets the body shift on the frame. Daystar KF04050BK is the black polyurethane bushing set that goes into the steel shells already on the truck. The bolts are not in this box.
- Black polyurethane: The bushings are a different size than the crushed rubber, and they hold the cab at the original factory height instead of packing down.
- Part number: Daystar KF04050BK fits 1999-2016 Ford F-250 and F-350 Super Duty trucks, 2WD and 4WD.
- Shells you reuse: Pull the old rubber out of the original steel shells and press these bushings in. At the radiator support, keep the original top shell only and use the kit washer on the bottom. Do not reuse the original bottom shell there.
- Mount layout: M03305 goes on the upper shell and M02546 goes on the lower shell. Some trucks need the smaller M03306 at position 3 instead of M03305. If M02546 will not seat in the frame, reuse the original lower mount.
- Cabs covered: Pieces for every cab style are in the box, and not every piece is used on your truck.
- Limited lifetime warranty: Daystar covers this bushing kit with a limited lifetime warranty.
- Does not fit: A 2000-2005 Ford Excursion, which uses Daystar KF04051BK.
- Not in the box: Bolts, nuts, and new steel shells. Reuse the factory hardware, or add Daystar KF04057ST, the bolt kit sold for KF04050BK and KF04050KV.
Order today to secure your replacement. Confirm the truck is a 1999-2016 F-250 or F-350 and that the original steel shells are still usable.
