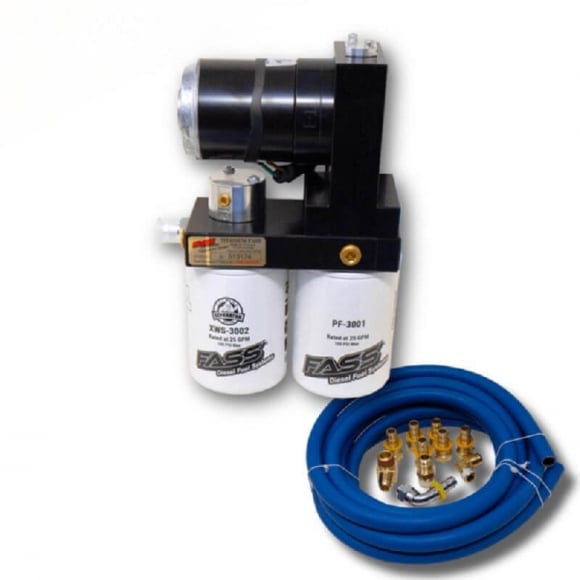

Engineered for 2005–2018 and 2021–2024 Dodge Ram 2500 and 3500 diesel trucks powered by the 5.9L Common Rail or 6.7L Cummins engine, the FASS Titanium Signature Series Fuel Air Separation System (TSD07100G) provides a reliable low-pressure fuel supply to protect expensive high-pressure injection equipment. The factory in-tank lift pump frequently struggles to maintain consistent head pressure under towing loads or light performance tuning, creating suction vacuum that introduces air bubbles and moisture into the fuel line. This air entrainment causes premature CP3 pump wear, injector tip erosion, and rail pressure drops; the TSD07100G eliminates these issues by supplying steady positive pressure directly to the high-pressure pump inlet.

This system includes two FASS BHF-1005 6061-T6 billet aluminum bulkhead fittings and a PTFE Teflon suction tube, allowing clean plumbing directly through the factory fuel tank module without cutting the filler neck. As diesel fuel circulates through the Titanium housing, FASS Whisper Technology (FWT) and Performance Radius Cuts (PRC) optimize fluid velocity while keeping electric motor noise down to a whisper. Operating alongside the Mass Flow Return (MFR) system, the pump continuously polishes fuel by removing over 99% of entrained water, eliminating air and vapor bubbles, and trapping abrasive contaminants down to 2 microns absolute.

Key Features & Benefits

• Continuous 100 GPH Flow Delivery: Supplies 100 gallons per hour of pure diesel fuel at a constant 16–18 PSI, providing positive supply volume for stock to mildly modified trucks up to 600 HP.
• 2-Micron Absolute Particulate Filtration: Captures microscopic debris down to 2 microns absolute, significantly extending the life of Bosch CP3 injection pumps and common rail injectors.
• Over 99% Water Separation: High-efficiency spin-on water separator blocks free and emulsified moisture from reaching sensitive high-pressure rail components.
• Patented Air & Vapor Separation: FASS Mass Flow Return continuously deaerates fuel, increasing lubricity by at least 10% to prevent scoring, quiet engine operation, and stabilize idle.
• FASS Whisper Technology (FWT): Precision gear machining, tighter acoustic tolerances, and specialized internal coatings drastically lower operating motor decibels compared to earlier aftermarket pumps.
• Performance Radius Cuts (PRC): Eliminates sharp 90-degree internal edges to prevent fluid turbulence, vapor pocketing, and fuel cavitation.
• Bolt-On Steel Mounting Brackets: Heavy-duty machined steel bracketry bolts directly to factory truck bed/frame bolt locations without requiring frame drilling or welding.

Technical Specifications

• Manufacturer Part Number / SKU: TSD07100G (Titanium Signature Series)
• Truck Platform: 2005–2009 (3rd Gen), 2010–2018 (4th Gen), & 2021–2024 Ram Heavy Duty 2500 / 3500
• Engine Platform: 2005–2007 5.9L 24V Common Rail & 2007.5–2018 / 2021–2024 6.7L 24V Cummins
• Flow Rating: 100 Gallons Per Hour (GPH)
• Operating Pressure: Preset to 16–18 PSI (Diesel Common Rail Spec)
• Horsepower Rating: Recommended for Stock to 600 HP Applications
• Filtration Rating: 2-Micron Absolute Particulate Filter & High-Efficiency Water Separator
• Suction Hardware: Includes BHF-1005 Billet Aluminum Bulkhead & PTFE Suction Tube Kit
• Fuel Line Size: 1/2-Inch High-Flow Fuel Line
• Motor Life Expectancy: 1,000,000+ Miles
• Warranty: FASS Limited Lifetime Warranty (with completed product registration)

Vehicle Fitment & Installation Notes

• 2005–2007 Dodge Ram 2500 / 3500 – 5.9L 24V Common Rail Cummins
• 2007.5–2009 Dodge Ram 2500 / 3500 – 6.7L 24V Cummins Turbo Diesel
• 2010–2018 Ram 2500 / 3500 – 6.7L 24V Cummins Turbo Diesel
• 2021–2024 Ram 2500 / 3500 – 6.7L 24V Cummins Turbo Diesel
• Fitment Notice: Standalone system that utilizes the included bulkhead and suction tube kit (requires dropping the fuel tank or lifting the bed to access the factory fuel basket). Does not fit 2019–2020 Ram trucks without custom plumbing due to factory low-pressure line variations (use TSD12100G for 19–20). Cab & Chassis models may require custom bracket mounting.
• Installation Tip: Trim the included PTFE Teflon suction tube so it sits approximately 1/8" to 1/4" off the bottom of the fuel tank module; this prevents the tube from sealing against the floor of the tank while allowing safe operation below 1/8 tank.
