Beans Diesel 280003 Multi-Function Fuel Tank Sump
Eliminate quarter-tank stalls, noisy lift pumps, and complicated installs with the Beans Diesel 280003 Multi-Function Fuel Tank Sump. This USA-made, CNC-machined 6061 billet aluminum sump pulls fuel from the absolute lowest point in your tank so you can use every last drop—without sucking air or starving your aftermarket lift pump.
Why It Works Better
Factory pickup tubes leave unused fuel at the bottom and force your pump to work harder. The Beans Diesel sump solves this by gravity-feeding from the tank floor. The result is quieter pump operation, reduced strain, and reliable fuel delivery even when the tank is nearly empty. It’s ideal for high-flow systems like FASS, AirDog, and Fuelab on Cummins, Duramax, and Powerstroke trucks.
A machined sediment bowl helps keep debris away from your filters, and a stainless drain plug makes tank servicing or sediment draining simple.
Fast, Leak-Resistant Installation
No tank drop required. Drill a single 3" hole (hole saw included for plastic tanks), slide the innovative “Pac-Man” backer ring through the opening, and secure everything with one stainless bolt. The single O-ring Boss (ORB) design creates a superior seal compared to traditional pipe-thread fittings, minimizing leak points.
Installation typically takes well under an hour with basic tools.
Versatile Configurations
Use it as a supply/return setup, single-outlet sump, or dual-outlet for high-horsepower applications. The kit includes multiple aluminum fittings and plugs so you can adapt it to most aftermarket fuel systems.
Key Features
- One-piece 6061 billet aluminum construction (CNC-machined in Woodbury, TN)
- Single-bolt, single 3" hole install — no tank drop
- O-ring Boss fittings for a leak-resistant seal
- Stainless drain plug and hardware
- Built-in sediment trap
- Works on plastic or metal tanks (gas or diesel)
- Requires a 4" diameter flat mounting surface

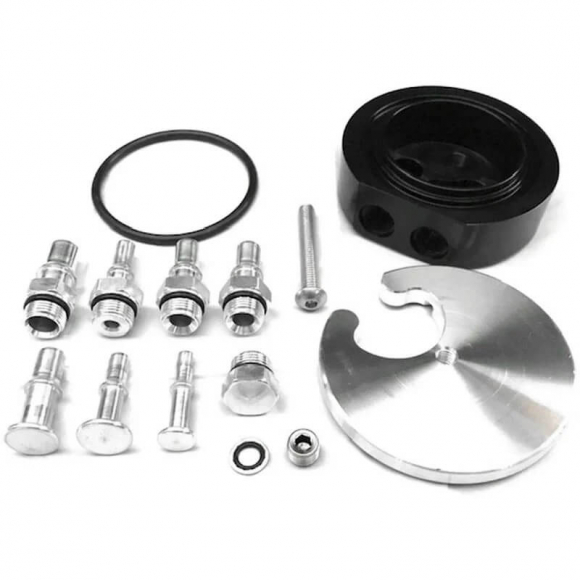

Kit Includes: Billet sump body, Pac-Man in-tank backer ring, 3" hole saw (plastic tanks), stainless bolt/washer/O-ring, assorted -8 ORB to 3/8", 1/2", and 5/8" push-lock/QD fittings, and plugs for single-outlet use.
Fitment: Universal — most diesel (and gas) fuel tanks with a suitable 4" flat area. Cutting required. Metal tanks need a separate metal hole saw.
Get more usable fuel, quieter operation, and a cleaner, simpler install with the original single-hole design sump from Beans Diesel.
