Thumbnail Filmstrip of 1994-2003 7.3L Powerstroke HPOP Reservoir Hold Down Bolt Ford 1817963-C1 Images

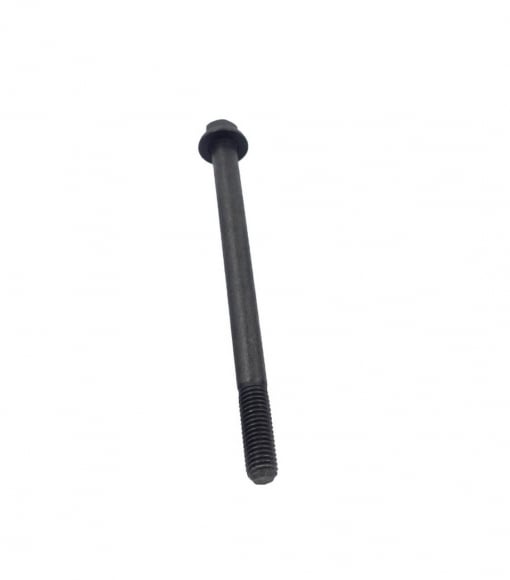

The Ford 1817963-C1 is the hold-down bolt for the HPOP reservoir on a 1994–2003 7.3 Powerstroke. It is the bolt that clamps the reservoir to the front cover. Sold one at a time. The gasket is not included.
These bolts round off and get lost when the reservoir comes off for a pump or a gasket. Replace them instead of reusing a chewed head. It is not the gear bolt. That is W302170, and it torques to 95 lb-ft. It is not the pump mounting bolt. Reservoir hardware is commonly torqued to 18 lb-ft. More than that can crack the reservoir.
It fits 1994–2003 7.3 trucks.
Fitment
- 1994–2003 Ford 7.3L Powerstroke
- HPOP reservoir hold-down
- Genuine Ford 1817963-C1
- Sold individually
- Gasket not included
- Not the gear bolt
Replace the reservoir gasket when the cover comes off. A 1996 to early-1999 uses F6TZ-6619-AA. A late-1999.5 through 2003 uses YC3Z-6619-BA. They do not interchange.
The Ford 1817963-C1 is the hold-down bolt for the HPOP reservoir on a 1994–2003 7.3 Powerstroke. It is the bolt that clamps the reservoir to the front cover. Sold one at a time. The gasket is not included.
These bolts round off and get lost when the reservoir comes off for a pump or a gasket. Replace them instead of reusing a chewed head. It is not the gear bolt. That is W302170, and it torques to 95 lb-ft. It is not the pump mounting bolt. Reservoir hardware is commonly torqued to 18 lb-ft. More than that can crack the reservoir.
It fits 1994–2003 7.3 trucks.
Fitment
- 1994–2003 Ford 7.3L Powerstroke
- HPOP reservoir hold-down
- Genuine Ford 1817963-C1
- Sold individually
- Gasket not included
- Not the gear bolt
Replace the reservoir gasket when the cover comes off. A 1996 to early-1999 uses F6TZ-6619-AA. A late-1999.5 through 2003 uses YC3Z-6619-BA. They do not interchange.
Fits: 7.3 Powerstroke 1994-2003
Fits: 7.3 Powerstroke 1999-2003
Fits: 7.3 Powerstroke 1994-1995
Fits: 7.3 Powerstroke 1994-2003
