The DK Engine Parts DK-FD6.0-NCMK High-Pressure Oil Rail Nipple Cup Master Repair Kit is an all-in-one overhaul package engineered specifically to service the high-pressure oil rails on 2003–2007 Ford 6.0L Powerstroke diesel engines. This master kit bundles eight hardened steel alloy nipple cups (ball tubes) with heavy-duty fluorocarbon (Viton) internal seals and a specialized 1/2-inch drive installation socket tool, providing everything required to rebuild both bank oil rails on the bench without purchasing expensive complete rail assemblies.

Quick Specs & Kit Inclusions

• Application: High-pressure oil rail ball tube (nipple cup) complete overhaul
• Cup Material: Case-hardened, heat-treated alloy steel featuring micro-polished spherical sealing tips
• Seal Material: High-temp fluorocarbon (Viton) internal O-rings paired with rigid backup rings
• Tool Drive Size: 1/2-inch square drive compatible with shop ratchets, breaker bars, and torque wrenches
• Coverage: Complete V8 engine kit (services both passenger- and driver-side oil rails)
• Emissions Status: 50-state legal (direct mechanical replacement)

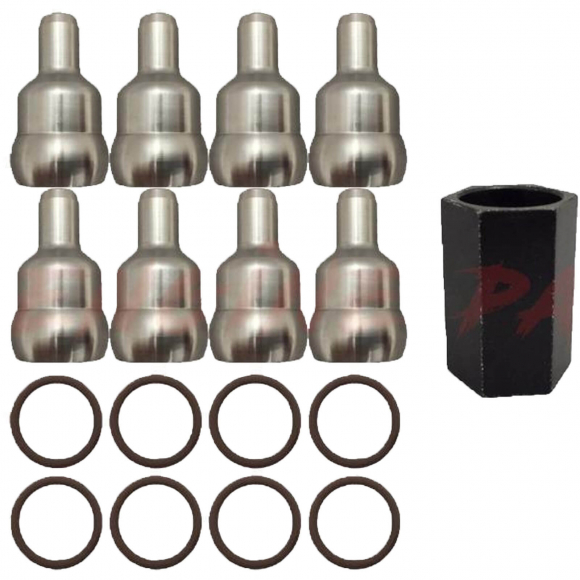

• What's in the Box: (8) Hardened Steel Oil Rail Nipple Cups, (8) Heavy-Duty Viton O-Rings, (8) Steel Backup Rings, (8) Retaining Collars, and (1) 1/2-Inch Drive Ball Tube Removal/Installation Socket Tool

Problem Solved: Curing Hot No-Starts & Low ICP Trouble Codes

Internal high-pressure oil (HPO) leaks are the most frequent root cause of extended crank times, erratic idle, hot no-start conditions, and low Injector Control Pressure diagnostic trouble codes (P2291, P2284) on 6.0L Powerstroke engines. Under continuous high pressures reaching 4,000 PSI and severe thermal cycling, the factory internal O-rings beneath each ball tube flatten, harden, and rupture. At the same time, the spherical heads become pitted or scored, preventing a tight seal against the fuel injector top d-rings. The DK Engine Parts master kit permanently resolves these leaks by providing new precision-machined ball cups, heat-resistant Viton seals, and the exact engagement tool required to complete the rebuild without damaging rail threads or retaining collar lugs.

Fitment

• 2003–2007 Ford F-250 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-350 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-450 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-550 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2005 Ford Excursion 6.0L Powerstroke Turbo Diesel
• 2004–2010 Ford E-Series Vans (E-350 / E-450) 6.0L Powerstroke Turbo Diesel
• Note: Compatible with both early wavy-style (2003–early 2004) and late cast-style (late 2004–2007) high-pressure oil rails.

Rail Removal & Bench Mounting: Remove both high-pressure oil rails from the engine following factory service procedures. Clamp each rail securely into a soft-jaw bench vise to prevent cosmetic scoring or structural distortion of the rail body. Collar Removal: Seat the included DK Engine socket tool squarely into the drive slots of the ball tube retaining collar. Using a 1/2-inch drive hand ratchet or breaker bar, apply steady, linear counter-clockwise leverage to unthread and remove the retaining collar. (Never use pneumatic or electric impact guns, as excessive hammering can shear the drive lugs on the collar). Cavity Cleaning & Inspection: Extract the worn ball tube, internal O-ring, and backup ring from the rail cavity. Thoroughly clean the female threads and internal sealing glands using brake cleaner and lint-free shop cloths; inspect the bore walls to verify there is no severe gouging or debris. Seal Installation: Coat the new Viton O-rings and backup rings with clean motor oil or clean assembly lubricant. Seat the backup ring and O-ring squarely into the internal rail gland, confirming the seal sits flat without twisting. Nipple Cup Placement: Generously lubricate the ball tube shaft, lower base, and spherical head with clean engine oil. Insert the nipple cup squarely into the cavity, followed by the threaded retaining collar. Torque Target: Re-engage the included installation socket squarely over the collar. Using a calibrated 1/2-inch drive torque wrench, tighten the retaining collar to 100 ft-lbs (135 Nm). Swivel & Deflection Check: Check each ball tube after torquing to confirm it maintains slight multi-directional swivel flexibility while exhibiting zero axial (in-and-out) play. If a cup is locked solid or has loose axial movement, unthread the collar and inspect internal seal alignment. Final Rail Installation: Generously coat the spherical ball tips and fuel injector top d-rings with clean engine oil before bolting the rails down to the cylinder heads, ensuring smooth alignment without tearing the top injector seals.
