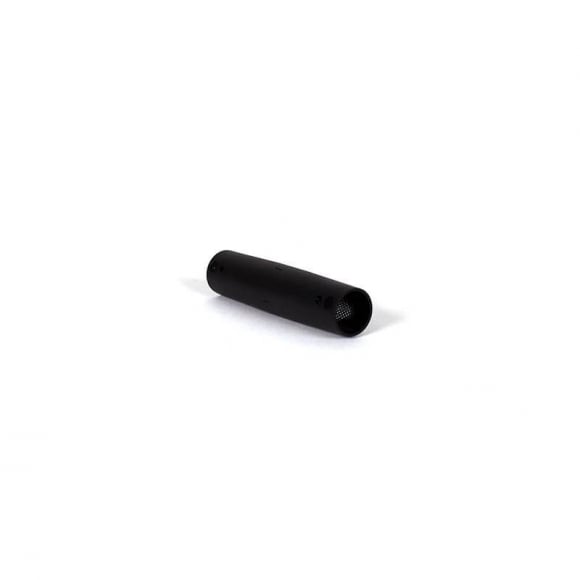

The Ford HC3Z-6C683-A is the genuine turbocharger boost pressure solenoid filter for 2020-2025 6.7L Powerstroke Super Duty trucks. It screens the oil that operates the turbo's boost control.

Ford notes that this filter is included with a new turbocharger, so you only need it separately when servicing the original turbo or pedestal. It replaces the earlier HC3Z-6C683-B.

• Genuine Ford Part: Built to the original Ford specification.
• Boost Control Screen: Filters oil to the boost pressure solenoid.
• Steady Boost Control: A clean screen keeps the VGT responding.
• Included With New Turbo: Ford ships it with a replacement turbo.
• Direct Replacement: Factory size and fit.

Technical Specifications

• Part Number: HC3Z-6C683-A
• Manufacturer: Ford Motorcraft
• Ford Description: Turbocharger boost pressure solenoid filter (replaces HC3Z-6C683-B)
• Warranty: 12 months / 12,000 miles (Ford)

Vehicle Fitment & Technical Installation Notes

• Fitment: 2020-2025 Ford F-250 and F-350 Super Duty with the 6.7L Powerstroke.
• Installation Tip: Never reuse turbo gaskets, O-rings or V-band clamps once they have been heat cycled. Clean every sealing face, install the turbo with fresh parts and torque the hardware to the Ford spec in sequence.
