6.0 Powerstroke Dual HPOP Kit | KC 301086 (KC Turbos)

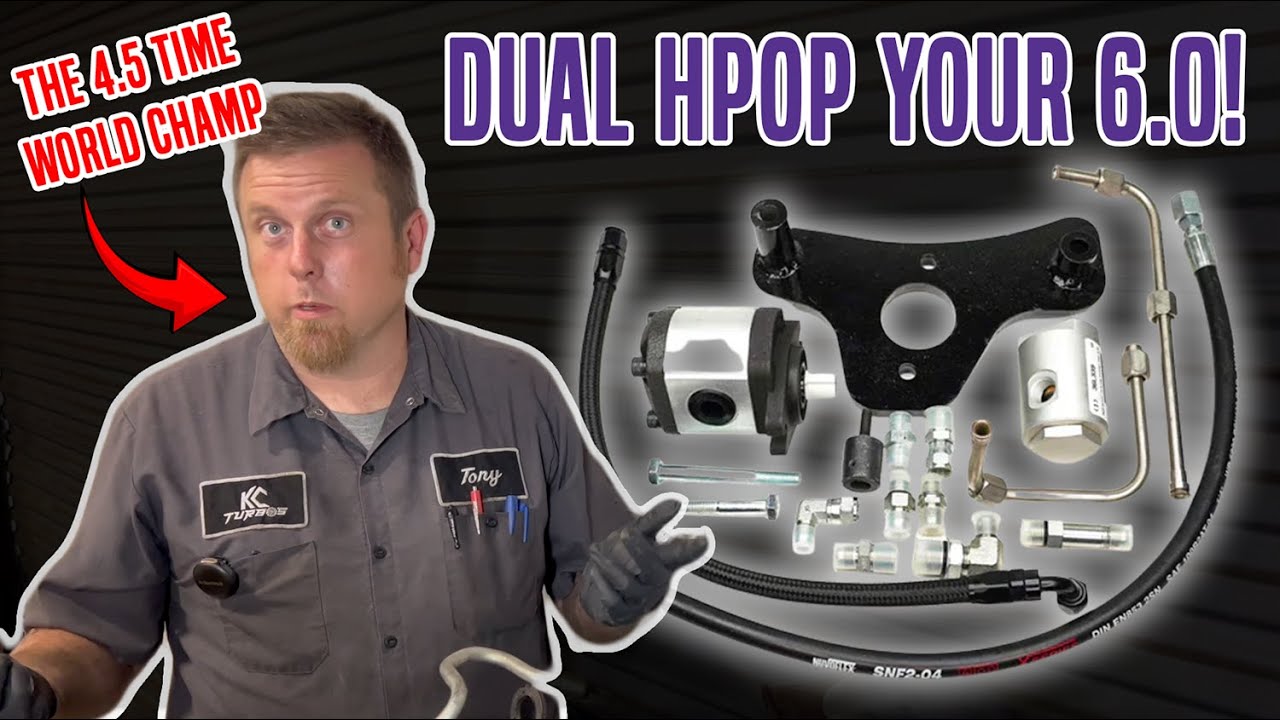

Maximize the high-pressure oil supply on your 2005–2007 6.0L Powerstroke with the KC Turbos Dual HPOP Kit. This front-mounted auxiliary high-pressure oil pump works alongside your factory rear HPOP to deliver the massive oil volume and pressure that big, oil-hungry injectors demand.

Whether you're running large hybrid injectors or stepping up to serious horsepower, this kit provides the reliable ICP (Injection Control Pressure) needed for high-performance builds.

Proven Performance

• Holds strong ICP for up to 500/400 8mm hybrid injectors and supports builds making up to 1500 HP
• Excellent match for 430/200 7mm hybrids and large 300/200 conventional injectors
• Gives your injectors the oil volume they need for consistent, reliable performance at high power levels

Clean & Simple Installation

• Front-mounted design bolts directly to the power steering pump pulley location
• Retains your factory serpentine belt — no belt modifications or custom routing required
• Works with your factory CAC tubes — no intercooler pipe changes needed
• Compatible with VGT, non-VGT, and compound turbo setups

Important Notes

• Must be run with electric fans (mechanical fan clutch setup will not clear and does not provide adequate cooling)
• Does not fit trucks equipped with dual alternators
• This is the late-style version (cast iron HPOP) for 2005–2007 6.0 Powerstroke engines

This is the go-to dual HPOP solution when you're pushing your 6.0 with big injectors and want reliable high-pressure oil delivery without major fabrication or belt changes.
