The Mishimoto MMOR-F2D-03 High-Pressure Oil Rail Ball Tube Set is an all-inclusive overhaul kit engineered specifically to rebuild the high-pressure oil rails on 2004.5–2007 Ford 6.0L Powerstroke diesel engines. Featuring eight precision-machined steel alloy nipple cups with polished spherical sealing tips, heavy-duty fluorocarbon (Viton) internal O-rings, and a specialized removal and installation socket tool, this direct-fit kit restores high-pressure oil delivery to the fuel injectors without the expense of purchasing complete replacement oil rails.

Quick Specs & Kit Inclusions

• Application: High-pressure oil rail ball tube (nipple cup) complete rebuild
• Material Construction: High-tensile steel alloy featuring precision-machined and micro-polished spherical sealing heads
• Seal Material: High-temperature, oil-resistant fluorocarbon (Viton) internal O-rings
• Included Service Tool: 1/2-inch drive specialty socket engineered to remove and torque retaining collars
• Coverage: Complete V8 engine kit (services both passenger- and driver-side high-pressure oil rails)
• Warranty: Backed by the Mishimoto Lifetime Warranty
• Emissions Status: 50-state legal (direct mechanical replacement)

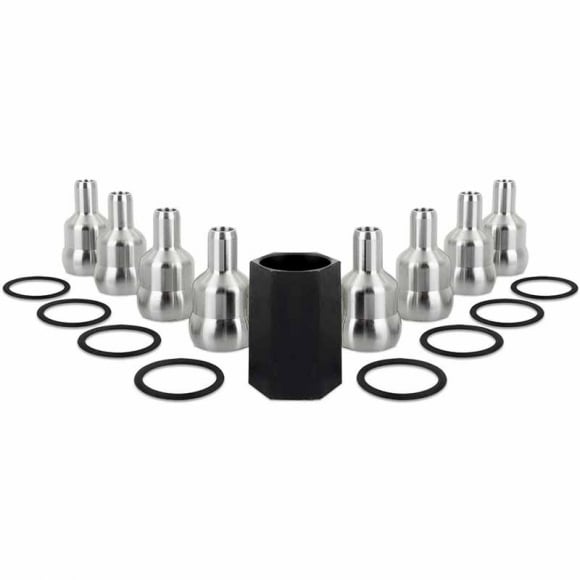

• What's in the Box: (8) Steel Ball Tubes, (8) Viton Internal O-Rings, (8) Retaining Collars, and (1) Specialty Installation Socket Tool

Problem Solved: Curing Hot No-Starts & Low ICP Pressure

A common failure point in the 6.0L Powerstroke high-pressure oil system is deterioration of the internal O-ring seals seated beneath the oil rail ball tubes. Under continuous operating pressures up to 4,000 PSI and intense engine heat, factory seals flatten, harden, and blow out, while the spherical heads wear against the top injector seals. This leads to internal oil bleed-off once the oil thins out at operating temperature, causing extended crank times, erratic idle, hot no-start conditions, and low ICP codes (P2291, P2284). The Mishimoto MMOR-F2D-03 kit permanently cures these leaks by replacing worn tubes with heat-resistant Viton-sealed units, including the necessary socket tool to execute the rebuild cleanly on the bench.

Fitment

• 2004.5–2007 Ford F-250 Super Duty 6.0L Powerstroke Turbo Diesel
• 2004.5–2007 Ford F-350 Super Duty 6.0L Powerstroke Turbo Diesel
• 2004.5–2007 Ford F-450 Super Duty 6.0L Powerstroke Turbo Diesel
• 2004.5–2007 Ford F-550 Super Duty 6.0L Powerstroke Turbo Diesel
• 2004.5–2005 Ford Excursion 6.0L Powerstroke Turbo Diesel
• 2004.5–2010 Ford E-Series Vans (E-350 / E-450) 6.0L Powerstroke Turbo Diesel
• Fitment Note: Specifically engineered for late-build 6.0L engines equipped with the "wavy" cast high-pressure oil rail (engine build date January 16, 2004, and newer).

Rail Removal & Bench Mounting: Remove both high-pressure oil rails from the cylinder heads following standard factory service procedures. Secure the rail firmly in a soft-jaw bench vise to prevent cosmetic marring or structural distortion of the rail body. Collar Removal: Seat the included Mishimoto socket tool squarely into the drive slots of the ball tube retaining collar. Using a 1/2-inch drive hand ratchet or breaker bar, apply steady, counter-clockwise leverage to unthread the retaining collar. (Do not use pneumatic or cordless impact guns, as aggressive hammering can fracture the retaining collar notches or tool lugs). Cleaning & Inspection: Extract the worn ball tube and old internal seal from the rail cavity. Thoroughly clean the female threads and internal sealing glands using brake cleaner and lint-free shop cloths; inspect the bore walls to verify there is no severe gouging or particulate contamination. Seal Installation: Coat the new Viton O-rings with clean engine oil or assembly lube. Seat each seal squarely into the internal rail gland, confirming the seal sits flat without twisting or bunching. Ball Tube Placement: Lubricate the spherical head, shaft, and lower base of the new Mishimoto ball tube with clean engine oil. Insert the ball tube into the cavity, followed by the threaded retaining collar. Torque Target: Re-engage the included installation tool over the retaining collar. Using a calibrated 1/2-inch drive torque wrench, tighten the collar to 100 ft-lbs (135 Nm). Swivel & Deflection Check: Check each ball tube after torquing to confirm it maintains slight multi-directional swivel flexibility while exhibiting zero axial (in-and-out) play. If a tube is locked rigid or exhibits lateral end-play, remove the collar and inspect internal seal alignment. Final Rail Installation: Generously coat the spherical ball tips and fuel injector top d-rings with clean engine oil prior to bolting the rails down to the cylinder heads, ensuring smooth alignment without pinching or tearing top injector seals.
