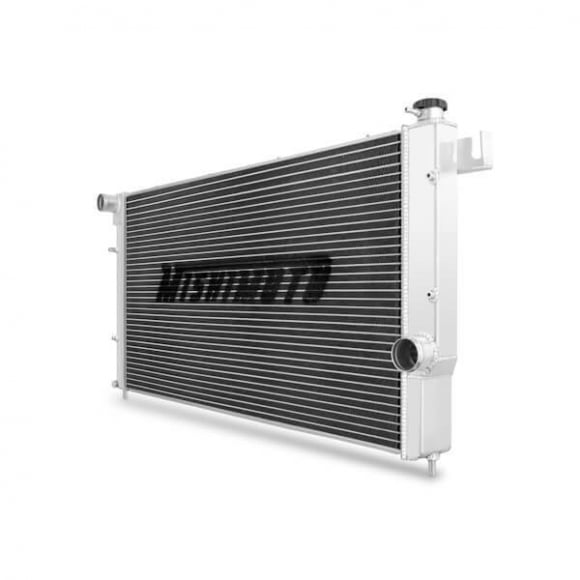

The Mishimoto MMRAD-RAM-94 is a direct fit aluminum performance radiator for 1994-2002 Dodge Ram 2500 and 3500 trucks with the 5.9L Cummins, 12 valve or 24 valve.

A 3-row, 2.44 inch thick brazed aluminum core with TIG welded tanks replaces the factory crimped plastic tank design. It comes with a 1.3 bar cap, magnetic drain plug and fan shroud bolts.

• 3-Row Core: 2.44 in brazed aluminum.
• TIG Welded Tanks: No plastic crimps.
• 1.3 Bar Cap: Included.
• Magnetic Drain Plug: Catches debris.
• Direct Fit: Bolts to the factory shroud.

Technical Specifications

• Part Number: MMRAD-RAM-94
• Manufacturer: Mishimoto
• Core: 36.42 x 19.21 x 2.44 in
• Capacity: 6.78 gal
• Inlet / Outlet: 1.77 in / 1.97 in
• Warranty: Limited Lifetime

Vehicle Fitment & Technical Installation Notes

• Fitment: 1994-2002 Dodge Ram 2500 and 3500 5.9L Cummins, 12V and 24V.
• Installation Tip: Use the supplied M6 bolts for the fan shroud and check the trans cooler line fittings for leaks after the first drive.
