Powerstroke B8 5160 Series Front Shock Absorber — Bilstein 25-311792

Give a lifted Super Duty the fade-free control a heavy Powerstroke needs. This Bilstein B8 5160 front shock is a bolt-in remote-reservoir upgrade for 2005–2026 Ford F-250 and F-350 4WD trucks, including 6.0L, 6.4L, and 6.7L Powerstroke applications. It is built for trucks running about 2"–2.5" of front lift, with Tremor packages typically fitting at 0"–2". Sold individually; two shocks are required per truck.

Stock and basic replacement shocks overheat quickly once you add lift, larger tires, and diesel torque. The 5160 solves that with a remote reservoir that adds oil volume, heat capacity, and usable travel without custom fabrication. You get reservoir-shock performance in the factory mounting points. The 46mm monotube body uses velocity-sensitive digressive valving that firms up over washboard and whoops, then stays composed on the highway. That mix is what owners want on a work truck that still sees dirt roads, towing, and daily miles.

Key features include a remote reservoir for more oil, better cooling, and less fade on long grades and rough trails; a 46mm monotube design for consistent damping and better heat transfer than twin-tube shocks; application-tuned digressive valving with self-adjusting deflective disc valving that reacts to speed and surface changes; a direct bolt-in fit with stem upper and eye lower mounts and no welding or custom brackets; a 360° swivel banjo hose fitting for clean, low-profile reservoir routing; a billet reservoir clamp included; a zinc-plated body with Triple-C coating for corrosion resistance in salt, mud, and winter use; U.S. manufacturing; and a limited 2-year Bilstein warranty.

Fitment

• 2005–2026 Ford F-250 Super Duty and F-350 Super Duty
• 4WD only
• Front position
• Typical lift: 2"–2.5" front on non-Tremor trucks
• Tremor packages: typically 0"–2" front lift
• Compatible with 6.0L, 6.4L, and 6.7L Powerstroke engines and gas Super Duty engines
• Sold individually; order 2 for a complete front pair
• Manufacturer lift height is a guideline because aftermarket kits vary
• Measure before purchase: pin-to-eye from the base of the stem where the hardware seats to the center of the lower eye
• Confirm collapsed and extended length against your current setup

Specifications

• Part number: 25-311792
• Series: Bilstein B8 5160
• Internal design: monotube, gas-charged
• Reservoir: remote
• Piston diameter: 46 mm
• Body: smooth-body, non-coilover
• Body diameter (OD): 2.0 in
• Shaft diameter: 14 mm
• Collapsed length: 13.17 in (334.5 mm)
• Extended length: 21.01 in (533.7 mm)
• Stroke: 7.84 in
• Upper mount: stem
• Lower mount: 14.4 mm eye
• Finish: zinc plated
• Adjustable damping: no
• Boot included: no

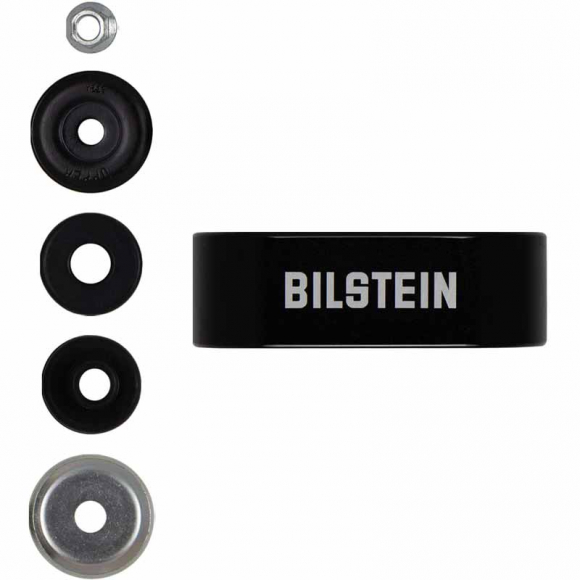

• Billet reservoir clamp: included
• Replacement mounting kit: B4-KT1-Z270A01
• Weight: 7.85 lb
• UPC: 651860898407
• Country of origin: United States
• Warranty: limited 2-year

Official Bilstein measurements are 13.17" collapsed and 21.01" extended. Some retailer pages list older or alternate figures, so use these lengths for confirmation.
