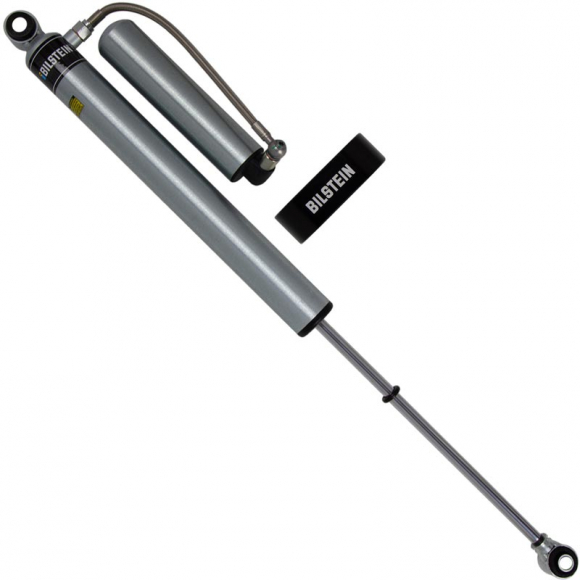

Bilstein B8 5160 Series Rear Shock Absorber — 25-311808
6.7 Powerstroke / Super Duty | Remote Reservoir | 0–3" Rear Lift
Give your lifted 2017–2026 Ford F-250 or F-350 Super Duty the fade-free control it needs. The Bilstein B8 5160, part number 25-311808, is a direct-fit rear remote-reservoir shock built for 6.7L Powerstroke trucks and 7.3L gas Super Dutys running a 0–3" rear lift. It is sold individually — order two for a complete rear pair.
Stock and basic aftermarket shocks fade when a heavy diesel is towing, loaded, or running larger tires. The 5160’s remote reservoir adds oil capacity and heat dissipation so damping stays consistent on the highway, on the job site, and off-road.
This shock uses a 46mm monotube, gas-charged design for consistent, fade-free performance instead of the fading common with twin-tube hydraulic shocks. The remote reservoir provides more oil, better cooling, and extra wheel travel through a floating dividing piston. Velocity-sensitive digressive valving is application-tuned for Super Duty weight, lift height, and use. A 360-degree swivel banjo hose fitting keeps hose routing clean and low-profile, and a billet reservoir clamp is included for a vehicle-specific mount. The zinc-plated finish adds corrosion protection for year-round use. Installation is direct bolt-on using factory rear mounting points — no welding or fabrication required.
This shock does not add lift. It is designed to work with an existing 0–3" rear lift. Confirm your exact rear lift height before ordering.
Fitment
- 2017–2026 Ford F-250 Super Duty 4WD
- 2017–2026 Ford F-350 Super Duty 4WD
- Rear position
- 0–3" rear lift
- Compatible with 6.7L Powerstroke diesel and 7.3L Godzilla gas
- Sold individually — two required per vehicle
Specifications
- Part number: 25-311808
- Series: Bilstein B8 5160
- Design: monotube with remote reservoir
- Body: smooth body (non-coilover), 46mm piston
- Collapsed length: 18.50 inches (470 mm)
- Extended length: approximately 31.64–31.76 inches
- Stroke/travel: approximately 13.14 inches
- Upper mount: eye 16 mm
- Lower mount: eye 14 mm
- Shaft diameter: 14 mm
- Finish: zinc plated
- Adjustable damping: no
- Dust boot included: no
- Billet reservoir clamp included: yes
- Country of origin: USA
- Warranty: limited 2-year
What’s included
One Bilstein B8 5160 rear shock (25-311808), remote reservoir with hose and 360-degree swivel banjo fitting, and billet reservoir mounting clamp/hardware. No dust boot. Sold as a single shock.
Install notes
Bolt on to the factory rear mounts. Mount the reservoir using the included billet clamp in the application-specific location so the hose has a clean path and full articulation. Confirm lift height and that you are ordering for the rear — this is not a front shock.
Built in the USA and backed by Bilstein’s limited 2-year warranty, the 25-311808 is a proven upgrade for Super Duty owners who tow, haul, and spend time on rough roads without wanting a full custom long-travel kit. Pair it with matching front 5160s if you want a complete reservoir setup. Always confirm year, model, 4WD, and rear lift before checkout.
Bilstein B8 5160 Series Rear Shock Absorber — 25-311808
6.7 Powerstroke / Super Duty | Remote Reservoir | 0–3" Rear Lift
Give your lifted 2017–2026 Ford F-250 or F-350 Super Duty the fade-free control it needs. The Bilstein B8 5160, part number 25-311808, is a direct-fit rear remote-reservoir shock built for 6.7L Powerstroke trucks and 7.3L gas Super Dutys running a 0–3" rear lift. It is sold individually — order two for a complete rear pair.
Stock and basic aftermarket shocks fade when a heavy diesel is towing, loaded, or running larger tires. The 5160’s remote reservoir adds oil capacity and heat dissipation so damping stays consistent on the highway, on the job site, and off-road.
This shock uses a 46mm monotube, gas-charged design for consistent, fade-free performance instead of the fading common with twin-tube hydraulic shocks. The remote reservoir provides more oil, better cooling, and extra wheel travel through a floating dividing piston. Velocity-sensitive digressive valving is application-tuned for Super Duty weight, lift height, and use. A 360-degree swivel banjo hose fitting keeps hose routing clean and low-profile, and a bille[...]
Bilstein B8 5160 Series Rear Shock Absorber — 25-311808
6.7 Powerstroke / Super Duty | Remote Reservoir | 0–3" Rear Lift
Give your lifted 2017–2026 Ford F-250 or F-350 Super Duty the fade-free control it needs. The Bilstein B8 5160, part number 25-311808, is a direct-fit rear remote-reservoir shock built for 6.7L Powerstroke trucks and 7.3L gas Super Dutys running a 0–3" rear lift. It is sold individually — order two for a complete rear pair.
Stock and basic aftermarket shocks fade when a heavy diesel is towing, loaded, or running larger tires. The 5160’s remote reservoir adds oil capacity and heat dissipation so damping stays consistent on the highway, on the job site, and off-road.
This shock uses a 46mm monotube, gas-charged design for consistent, fade-free performance instead of the fading common with twin-tube hydraulic shocks. The remote reservoir provides more oil, better cooling, and extra wheel travel through a floating dividing piston. Velocity-sensitive digressive valving is application-tuned for Super Duty weight, lift height, and use. A 360-degree swivel banjo hose fitting keeps hose routing clean and low-profile, and a billet reservoir clamp is included for a vehicle-specific mount. The zinc-plated finish adds corrosion protection for year-round use. Installation is direct bolt-on using factory rear mounting points — no welding or fabrication required.
This shock does not add lift. It is designed to work with an existing 0–3" rear lift. Confirm your exact rear lift height before ordering.
Fitment
- 2017–2026 Ford F-250 Super Duty 4WD
- 2017–2026 Ford F-350 Super Duty 4WD
- Rear position
- 0–3" rear lift
- Compatible with 6.7L Powerstroke diesel and 7.3L Godzilla gas
- Sold individually — two required per vehicle
Specifications
- Part number: 25-311808
- Series: Bilstein B8 5160
- Design: monotube with remote reservoir
- Body: smooth body (non-coilover), 46mm piston
- Collapsed length: 18.50 inches (470 mm)
- Extended length: approximately 31.64–31.76 inches
- Stroke/travel: approximately 13.14 inches
- Upper mount: eye 16 mm
- Lower mount: eye 14 mm
- Shaft diameter: 14 mm
- Finish: zinc plated
- Adjustable damping: no
- Dust boot included: no
- Billet reservoir clamp included: yes
- Country of origin: USA
- Warranty: limited 2-year
What’s included
One Bilstein B8 5160 rear shock (25-311808), remote reservoir with hose and 360-degree swivel banjo fitting, and billet reservoir mounting clamp/hardware. No dust boot. Sold as a single shock.
Install notes
Bolt on to the factory rear mounts. Mount the reservoir using the included billet clamp in the application-specific location so the hose has a clean path and full articulation. Confirm lift height and that you are ordering for the rear — this is not a front shock.
Built in the USA and backed by Bilstein’s limited 2-year warranty, the 25-311808 is a proven upgrade for Super Duty owners who tow, haul, and spend time on rough roads without wanting a full custom long-travel kit. Pair it with matching front 5160s if you want a complete reservoir setup. Always confirm year, model, 4WD, and rear lift before checkout.
