Thumbnail Filmstrip of 2020-2026 6.6L L5P Duramax Premium High-Efficiency Oversized Oil Filter PPE 114000750 Images

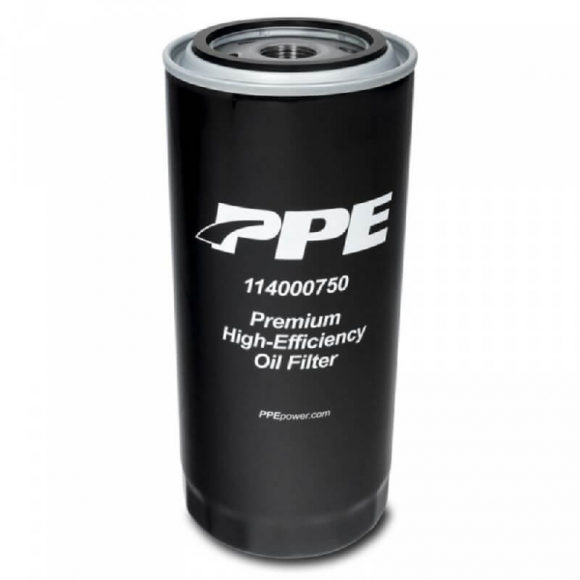

Elevate your 2020-2025 GM 6.6L Duramax L5P's oil filtration to a new level with the PPE 114000750 Premium High-Efficiency Oversized Oil Filter. This cutting-edge filter surpasses conventional options by offering an expansive surface area through its 522 square inches of specially engineered 5-micron media—double that of standard filters. It’s designed to ensure maximum filtration and durability, thanks to a perforated metal center core that provides robust support for the filter media. A notable feature is the elimination of oil blow-by, achieved with the inclusion of a coil spring. Additionally, this filter is equipped with a silicone anti-drain-back valve to halt the flow of contaminated oil back into your engine, while an integrated magnet efficiently traps ferrous metals. The filter's bypass valve is enhanced with a rubber seal and a more robust spring, and its thicker base plate features 49% larger passages, enabling higher flow rates.
Key Features Include:
- Superior Filtration: Offers 522 square inches of 5-micron media for unparalleled filtration efficiency.
- Enhanced Durability: Supported by a perforated metal center tube for increased strength and longevity of the filter media.
- Reduced Blow-By: A coil spring mechanism effectively eliminates the risk of oil blow-by.
- Advanced Design: Includes a silicone anti-drain-back valve and an integrated magnet for capturing ferrous metals.
- Improved Flow: Features a thicker threaded plate with 49% larger oil passages for superior oil flow.
- Compatibility: Suitable for use with both synthetic and conventional oils.
- Upgraded Bypass Valve: Comes with a stiffer spring and rubber seal for reliability.
In comparison, the stock AC Delco PF26 filter provides only 259 square inches of 25-30 micron filtration, lacks a supporting center core which can lead to media collapse, and uses a simple leaf spring that may weaken over time, potentially allowing dirty oil blow-by. Its bypass valve also lacks any sealing, undermining effectiveness.
Note: Installation of this oversized filter necessitates the use of the 114002700 PPE Fuel Pump Relocation Bracket (refer to related items). By choosing the PPE Premium High-Efficiency Oversized Oil Filter, you not only enhance your vehicle's performance but also ensure the integrity and purity of its oil system, contributing to longer engine life and more reliable operation.
