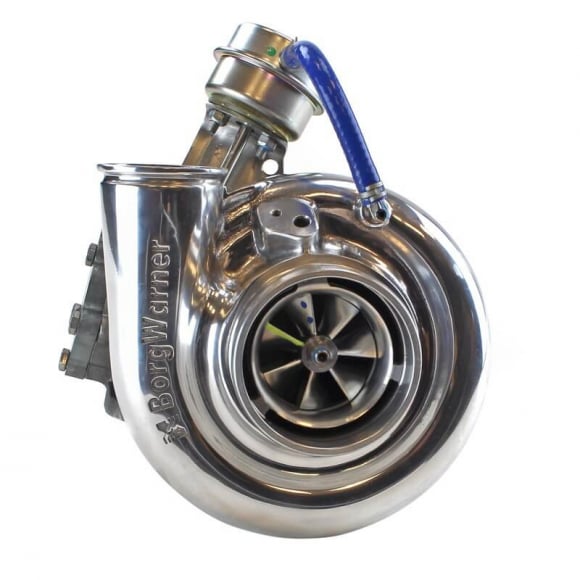

The factory HX35 runs out of air once fueling goes up, which drives EGT and smoke. Replace it with the Industrial Injection Silver Bullet PhatShaft 62 turbo, a drop in turbo built for aggressive fueling and racing. It fits 1994-2002 Dodge Ram 2500 and 3500 with the 5.9L Cummins, 12 valve and 24 valve.

Wheels: Extended tip 62mm forged milled compressor wheel with a 74mm turbine wheel in a 14cm exhaust housing. No core charge applies to this part.

Key Features & Benefits

• Bearings: 360 degree thrust bearing and dual grooved high performance journal bearings.
• Housing work: Industrial Injection reworks the exhaust nozzle angle, opens the wastegate ports and enlarges the wastegate chamber for full wastegate travel, and adds an adjustable boost elbow.
• Required: An HX40 style downpipe, sold separately. Depending on the factory oil drain, the drain may need slight modification to clear the wastegate rod.

Technical Specifications

• Manufacturer/Brand: Industrial Injection
• Part Number/SKU: 3622317411 (iis3622317411)
• Product Type: Silver Bullet Phatshaft 62 Turbo
• Truck Compatibility: 1994-2002 Dodge Ram 2500 and 3500 with the 5.9L Cummins, 12 valve and 24 valve
• Engine Platform: 5.9L 12V / 24V Cummins
• Core Requirement: No core required

Vehicle Fitment & Technical Installation Notes

Fits 1994-2002 Dodge Ram 2500 and 3500 with the 5.9L Cummins, 12 valve and 24 valve.

Installation Tip: Such as Industrial Injection HX40DP2.
