The factory HX35 or HX40 runs out of air once injectors and pump tuning go up, so EGT climbs and smoke follows. Replace it with the BD 1045250 Super B 600 SX-E S364.5 kit, built to BD specs instead of a box turbo. It fits 1994-2002 Dodge Ram 2500 and 3500 with the 5.9L Cummins, 12 valve and 24 valve.

Build: Borg Warner SX-E with a 360 degree thrust bearing and forged milled wheels that are lighter and stronger at high shaft speeds. No core charge applies to this part.

Key Features & Benefits

• Wheels: 64.5mm compressor and 80mm turbine, 0.80 A/R T3 housing, for a turbo sized to roughly 600 hp depending on truck setup.
• Flow: 82 lb/min, enough air to keep EGT down and clean up smoke on a fueled truck.
• Wastegate: BD heavy duty wastegate and bracket hold boost and guard against overspeed, with turnbuckle boost control for altitude or tuning changes.

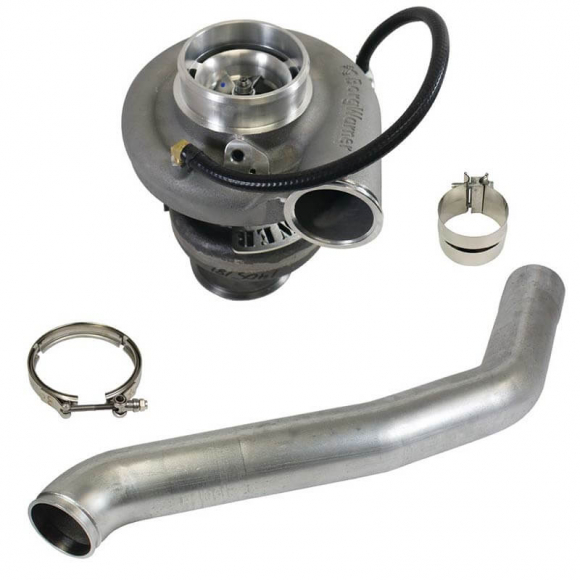

• Bolt on: Mounts to the stock T3 exhaust manifold. Kit includes the downpipe, V-band clamp and band clamp.
• Exhaust brake: A turbo mount exhaust brake cannot be used with this kit. Use a remote mount brake.

Technical Specifications

• Manufacturer/Brand: BD Diesel
• Part Number/SKU: 1045250 (bdd1045250)
• Product Type: Super B 600 SXE S364.5 Turbo Kit
• Construction: Borg Warner SX-E with a 360 degree thrust bearing and forged milled wheels that are lighter and stronger at high shaft speeds.
• Truck Compatibility: 1994-2002 Dodge Ram 2500 and 3500 with the 5.9L Cummins, 12 valve and 24 valve
• Engine Platform: 5.9L 12V / 24V Cummins
• Core Requirement: No core required
• Warranty: 12 months or 12,000 miles

Vehicle Fitment & Technical Installation Notes

Fits 1994-2002 Dodge Ram 2500 and 3500 with the 5.9L Cummins, 12 valve and 24 valve.

Installation Tip: Check that your exhaust manifold is not cracked or leaking before the new turbo goes on.
