Reliable Power Handling for Your 2006 LBZ Duramax

The South Bend Clutch SDM0506CBK Dyna Max Performance Clutch Kit is the ideal upgrade for 2006 LBZ Duramax owners who want more holding power without sacrificing drivability. Rated for 450 horsepower and 900 lb-ft of torque, this complete single-disc clutch kit converts the factory dual-mass flywheel to a durable solid flywheel while delivering strong, consistent engagement under load.

Whether you're tuned for more power, towing heavy, or simply want to eliminate the common failures of the stock clutch and dual-mass flywheel, the SDM0506CBK gives you a robust, serviceable solution designed specifically for the LBZ platform and ZF6 6-speed manual transmission.

Key Features & Benefits

• 450 HP / 900 lb-ft Torque Capacity — Handles significant power increases from ECM tuning and bolt-ons while maintaining excellent street manners and towing capability.
• Ceramic Button Friction Material — Provides strong bite and superior heat resistance compared to organic discs, with a sprung hub for smoother engagement.
• Solid Flywheel Conversion — Replaces the problematic factory dual-mass flywheel with a high-quality one-piece cast steel flywheel.
• Serviceable Design — Features a removable bronze/feramic friction insert on the flywheel for easier and more cost-effective future rebuilds.
• Premium Construction — Quality steel components throughout, engineered for the demands of modified diesel trucks.
• Complete Kit — Includes everything needed for installation (see details below).

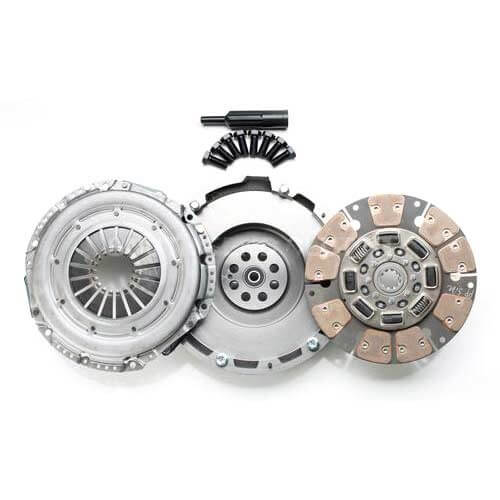

What's Included

• Ceramic button clutch disc (sprung hub, 10-spline)
• Performance pressure plate
• Solid cast steel flywheel (8-bolt mounting, 152-tooth ring gear)
• Pilot bushing
• Alignment tool
• Mounting hardware

Important Notes

• Concentric slave cylinder (hydraulic throw-out bearing) is NOT included. South Bend strongly recommends replacing it at the same time with the South Bend HYDX-MAX hydraulic assembly for proper pedal feel and performance.
• Non-SFI approved — designed for street, towing, and performance use (not competition/racing).
• Professional installation recommended. Proper flywheel bolt torque and clutch break-in procedure are required.

Vehicle Fitment

• 2006 Chevrolet Silverado / GMC Sierra 2500HD & 3500HD
• 6.6L LBZ Duramax Diesel (VIN 8th digit = D)
• ZF6 6-Speed Manual Transmission

Specifications

• Clutch Type: Single disc, ceramic button (Stage 2 Dyna Max)
• Input Shaft: 1.375" diameter × 10 spline
• Disc Diameter: 12" (305 mm)
• Flywheel: Solid cast steel with serviceable bronze/feramic insert
• Warranty: 1 Year / 12,000 Miles
• Country of Origin: USA

Why South Bend Clutch? South Bend is one of the most trusted names in diesel performance clutches. Their Dyna Max line is known for innovative features like the removable flywheel friction surface and consistent real-world durability in modified Duramax trucks.

Recommended Add-Ons

• South Bend HYDX-MAX Hydraulic Assembly (highly recommended)
• ARP flywheel bolt kit (for extra peace of mind on high-torque builds)

This clutch kit gives your LBZ the holding power it needs while keeping daily driving and towing civilized. Order yours today and get back on the road with confidence.
