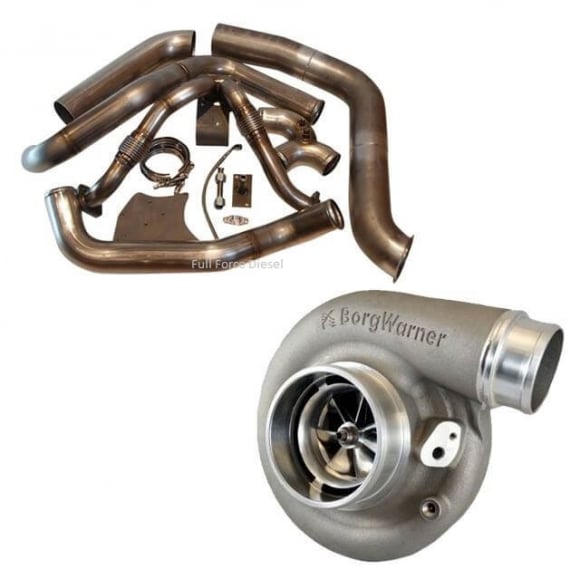

Irate Diesel T4 turbo mount kit and Borg Warner S369 SXE turbo for up to 600hp. The SXE 369 Turbo features a 69mm inducer for quick spool up. The SXE borg warner turbo is also upgraded with 360 thrust bearings and a billet compressor wheel for fast spool up and longevity. The 369 turbo is really popular because it has the spool up characteristics of a S300 but flows as much air as a S400! This turbo supports up to 275cc-350cc injectors. This turbo comes as a super core. This means there isn't an exhaust housing for those who have one that can be installed. Otherwise please choose the housing of your choice.
Housings:
- .91 Housing - Faster spool up - Recommend for manual transmissions or smaller injectors
- 1.0 Housing - Best for automatic transmissions - Bigger injectors - Slower spool time on the street
Note: Does Not Include Boots & Clamps
- Borg Warner S369 SXE Turbo
- T300 T4 Complete Mount Kit
- Downpipe and clamp T-4 Mount Stainless
- Bellowed up pipes and collector
- Both stainless intercooler pipes Intake piping to connect to 4" filter
- Oil feed and drain lines
- Intake "Y" pipe with 2 weld in bungs for boost/Map sensor All installation hardware included for mounts
- Intake Plenums are optional from the drop down menu
Irate Diesel T4 turbo mount kit and Borg Warner S369 SXE turbo for up to 600hp. The SXE 369 Turbo features a 69mm inducer for quick spool up. The SXE borg warner turbo is also upgraded with 360 thrust bearings and a billet compressor wheel for fast spool up and longevity. The 369 turbo is really popular because it has the spool up characteristics of a S300 but flows as much air as a S400! This turbo supports up to 275cc-350cc injectors. This turbo comes as a super core. This means there isn't an exhaust housing for those who have one that can be installed. Otherwise please choose the housing of your choice.
Housings:
.91 Housing - Faster spool up - Recommend for manual transmissions or smaller injectors
1.0 Housing - Best for automatic transmissions - Bigger injectors - Slower spool time on the street
Note: Does Not Include Boots & Clamps
Includes:
Borg Warner S369 SXE Turbo
T300 T4 Complete Mount Kit
Downpipe and clamp T-4 Mount Stainless
Bellowed up pipes and collector
Both stainless intercooler pipes Intake piping to connect to 4" filter
Oil feed and drain lines
Intake "Y" pipe with 2 weld in bungs for boost/Map se[...]
Irate Diesel T4 turbo mount kit and Borg Warner S369 SXE turbo for up to 600hp. The SXE 369 Turbo features a 69mm inducer for quick spool up. The SXE borg warner turbo is also upgraded with 360 thrust bearings and a billet compressor wheel for fast spool up and longevity. The 369 turbo is really popular because it has the spool up characteristics of a S300 but flows as much air as a S400! This turbo supports up to 275cc-350cc injectors. This turbo comes as a super core. This means there isn't an exhaust housing for those who have one that can be installed. Otherwise please choose the housing of your choice.
Housings:
- .91 Housing - Faster spool up - Recommend for manual transmissions or smaller injectors
- 1.0 Housing - Best for automatic transmissions - Bigger injectors - Slower spool time on the street
Note: Does Not Include Boots & Clamps
- Borg Warner S369 SXE Turbo
- T300 T4 Complete Mount Kit
- Downpipe and clamp T-4 Mount Stainless
- Bellowed up pipes and collector
- Both stainless intercooler pipes Intake piping to connect to 4" filter
- Oil feed and drain lines
- Intake "Y" pipe with 2 weld in bungs for boost/Map sensor All installation hardware included for mounts
- Intake Plenums are optional from the drop down menu
4/5 Stars out of 2 Reviews
0
0
0
2
0
Cody F (Langford NY) | December 30th, 2021
Everything assembled nicely fyi does not come with turbo flange gasket or drain gasket, intercooler pipes, up pipes and down pipe fit great! The intake tube and boot of the turbo do not took a lot of trimming and testing to get it right
Jonathan Snyder (Oregon city) | January 5th, 2019
Great kit! No installation instructions but it is simple enough to not need them. One of the intake plenums was just slightly warped from the heat off the welds, but nothing to to be worried about.
Proposition 65 Warning Information -
P65Warnings.ca.gov
Fits: 7.3|6.0 Powerstroke 1999-2010
Fits: T4 S300|S400 Turbo
Fits: 7.3 Powerstroke 1999.5-2003
Fits: 7.3 Powerstroke 1994-2003
Fits: 7.3 Powerstroke 1994-2003
Fits: Borg Warner S300-SXE Turbo
