5.9 Cummins Dyna Max 12-1/4" Clutch Kit – South Bend Clutch K0090
Is your 1989–2004 Dodge Ram 5.9L Cummins slipping, chattering, or feeling vague when shifting? The South Bend Clutch K0090 Dyna Max 12-1/4" single-disc clutch kit is the premium stock-replacement upgrade designed specifically for 5.9 Cummins trucks.
This Stage 1 Dyna Max clutch features a full-face organic friction disc made from South Bend’s advanced 808 composite material. The result is exceptionally smooth engagement, significantly lower operating temperatures, reduced drivetrain shock, and longer service life than a stock clutch. The pressure plate delivers increased clamp load for better holding power while keeping pedal effort close to stock.
Rated for up to 350 horsepower and 650 ft-lbs of torque, the K0090 is an excellent choice for daily-driven trucks, light-to-medium towing, and vehicles with stock or mild performance modifications (programmer, exhaust, intake, etc.).

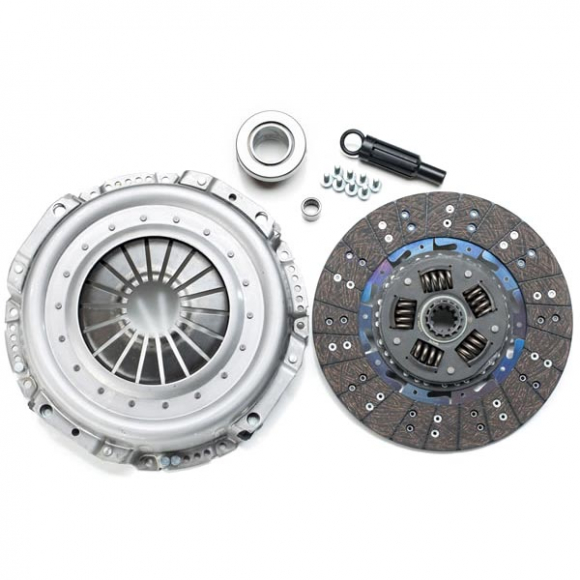

Kit Includes:
- Organic clutch disc
- Pressure plate
- Throw-out bearing
- Pilot bearing
- Alignment tool
- All necessary hardware
Important Notes:
- Flywheel is NOT included. Your existing stock 12-1/4" flywheel must be professionally resurfaced.
- This 12-1/4" clutch is ideal for light to medium towing. For heavy towing (over ~8,000 lbs combined) or higher torque levels, we strongly recommend one of South Bend’s 13" upgrade kits.
- NV5600 6-speed applications are limited to 1999–2000.5 non-HO (235 hp) models only.
South Bend Clutch kits are cryogenically treated for superior strength and durability, making the K0090 a trusted, proven choice among 5.9 Cummins owners who want reliable, smooth clutch performance without a harsh pedal.
Key Features
- Smooth Engagement — Full organic 808 composite disc delivers factory-like or better drivability
- Better Heat Management — Reduced operating temperatures for extended clutch and flywheel life
- Increased Clamp Load — Stronger holding power than stock while maintaining near-stock pedal feel
- Complete Kit — Includes throw-out bearing, pilot bearing, alignment tool, and hardware
- Direct Fit — Engineered for Getrag and NV4500 5-speeds (and early non-HO NV5600)
- Cryogenically Treated — South Bend’s signature treatment for added strength and longevity
- Rated Capacity — 350 HP / 650 ft-lbs torque (light to medium duty use)
Fitement
- 1989–1993 Dodge Ram 5.9L Cummins with Getrag 5-speed
- 1994–2004 Dodge Ram 5.9L Cummins with NV4500 5-speed
- 1999–2000.5 Dodge Ram 5.9L Cummins Non-HO (235 hp) with NV5600 6-speed
Does NOT fit:
- High-output NV5600 trucks
- Heavy towing applications exceeding ~8,000 lbs combined with high torque
- Trucks with significant power modifications (consider 13" South Bend kits instead)
5.9 Cummins Dyna Max 12-1/4" Clutch Kit – South Bend Clutch K0090
Is your 1989–2004 Dodge Ram 5.9L Cummins slipping, chattering, or feeling vague when shifting? The South Bend Clutch K0090 Dyna Max 12-1/4" single-disc clutch kit is the premium stock-replacement upgrade designed specifically for 5.9 Cummins trucks.
This Stage 1 Dyna Max clutch features a full-face organic friction disc made from South Bend’s advanced 808 composite material. The result is exceptionally smooth engagement, significantly lower operating temperatures, reduced drivetrain shock, and longer service life than a stock clutch. The pressure plate delivers increased clamp load for better holding power while keeping pedal effort close to stock.
Rated for up to 350 horsepower and 650 ft-lbs of torque, the K0090 is an excellent choice for daily-driven trucks, light-to-medium towing, and vehicles with stock or mild performance modifications (programmer, exhaust, intake, etc.).
Kit Includes:
Organic clutch disc
Pressure plate
Throw-out bearing
Pilot bearing
Alignment tool
All necessary hardware
Important Notes:
[...]
5.9 Cummins Dyna Max 12-1/4" Clutch Kit – South Bend Clutch K0090
Is your 1989–2004 Dodge Ram 5.9L Cummins slipping, chattering, or feeling vague when shifting? The South Bend Clutch K0090 Dyna Max 12-1/4" single-disc clutch kit is the premium stock-replacement upgrade designed specifically for 5.9 Cummins trucks.
This Stage 1 Dyna Max clutch features a full-face organic friction disc made from South Bend’s advanced 808 composite material. The result is exceptionally smooth engagement, significantly lower operating temperatures, reduced drivetrain shock, and longer service life than a stock clutch. The pressure plate delivers increased clamp load for better holding power while keeping pedal effort close to stock.
Rated for up to 350 horsepower and 650 ft-lbs of torque, the K0090 is an excellent choice for daily-driven trucks, light-to-medium towing, and vehicles with stock or mild performance modifications (programmer, exhaust, intake, etc.).
Kit Includes:
- Organic clutch disc
- Pressure plate
- Throw-out bearing
- Pilot bearing
- Alignment tool
- All necessary hardware
Important Notes:
- Flywheel is NOT included. Your existing stock 12-1/4" flywheel must be professionally resurfaced.
- This 12-1/4" clutch is ideal for light to medium towing. For heavy towing (over ~8,000 lbs combined) or higher torque levels, we strongly recommend one of South Bend’s 13" upgrade kits.
- NV5600 6-speed applications are limited to 1999–2000.5 non-HO (235 hp) models only.
South Bend Clutch kits are cryogenically treated for superior strength and durability, making the K0090 a trusted, proven choice among 5.9 Cummins owners who want reliable, smooth clutch performance without a harsh pedal.
Key Features
- Smooth Engagement — Full organic 808 composite disc delivers factory-like or better drivability
- Better Heat Management — Reduced operating temperatures for extended clutch and flywheel life
- Increased Clamp Load — Stronger holding power than stock while maintaining near-stock pedal feel
- Complete Kit — Includes throw-out bearing, pilot bearing, alignment tool, and hardware
- Direct Fit — Engineered for Getrag and NV4500 5-speeds (and early non-HO NV5600)
- Cryogenically Treated — South Bend’s signature treatment for added strength and longevity
- Rated Capacity — 350 HP / 650 ft-lbs torque (light to medium duty use)
Fitement
- 1989–1993 Dodge Ram 5.9L Cummins with Getrag 5-speed
- 1994–2004 Dodge Ram 5.9L Cummins with NV4500 5-speed
- 1999–2000.5 Dodge Ram 5.9L Cummins Non-HO (235 hp) with NV5600 6-speed
Does NOT fit:
- High-output NV5600 trucks
- Heavy towing applications exceeding ~8,000 lbs combined with high torque
- Trucks with significant power modifications (consider 13" South Bend kits instead)
Fits: 5.9 Cummins NV4500 5sp (94-04) | Non-HO NV5600 6sp (99-00.5) 650hp/1300tq
Fits: 5.9 Cummins 1994-2003 NV4500 5 Speed
Fits: 5.9 Cummins Getrag 5sp (89-93) | NV4500 5sp (94-04) | NV5600 6sp Non-HO (99-00.5) 400hp/800tq
