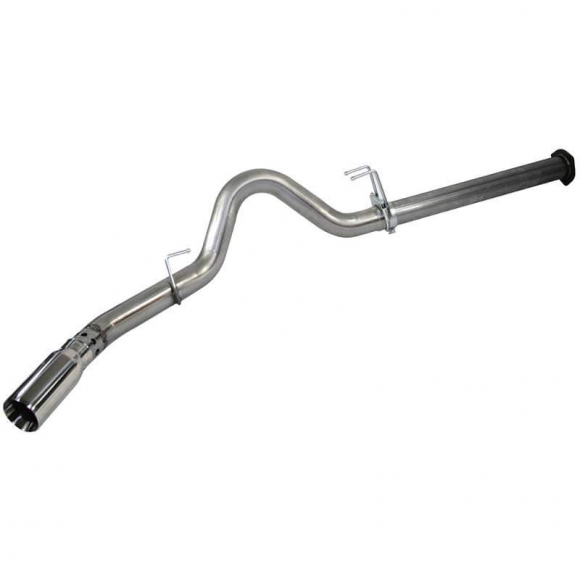

The aFe Large Bore HD 49-13028 is a 4 inch DPF-back exhaust for 2011-2014 Ford Super Duty trucks with the 6.7L Powerstroke. It replaces the factory exhaust behind the diesel particulate filter with larger, smoother tubing.

It is built from 4 inch mandrel-bent 409 stainless steel and finished with a polished 5 inch double wall tip. OE-style band clamps and bayonet hangers make for a clean, simple install.

• 4 Inch 409 Stainless Steel: Mandrel-bent tubing that resists rust and heat.
• One-Piece Over-Axle Tailpipe: Fewer joints to seal and align.
• Polished 5 Inch Tip: Double wall tip with a vent hole.
• OE-Style Hangers: Bayonet hangers and band clamps fit the factory mounts.

Technical Specifications

• Part Number: 49-13028
• Tubing: 4 inch mandrel-bent 409 stainless steel
• Tip: Polished 5 inch double wall (49T40501-P121)
• Mid-Pipe: 35 inch, cut to fit shorter wheelbases
• Type: DPF-back
• Core Requirement: No core required

Vehicle Fitment & Technical Installation Notes

• Fitment: 2011-2014 Ford F-250/F-350 Super Duty with the 6.7L Powerstroke, 137 to 172.4 inch wheelbase
• Installation Tip: Test fit the mid-pipe first. Shorter wheelbases need it cut at the end opposite the flange. When you install the tip, do not cover the vent hole.
