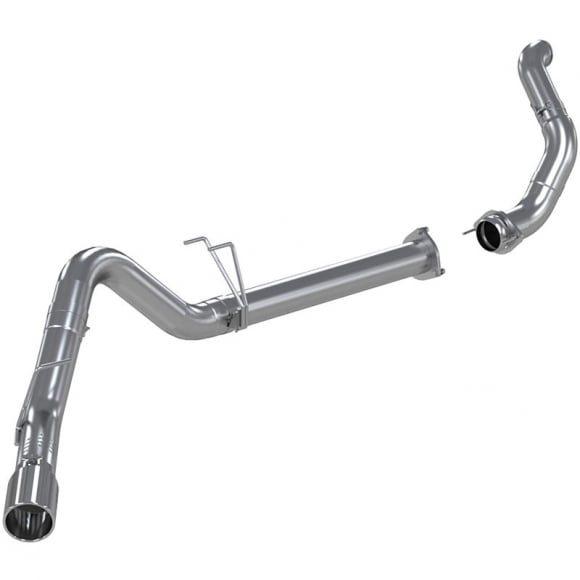

The MBRP S6284AL fits 2011-2014 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke. It replaces the factory turbo downpipe ahead of the diesel particulate filter and the extension, over-axle and tail pipes behind it. The factory DPF and the rest of the emissions hardware stay in place.
The system runs 4-inch mandrel-bent aluminized steel tubing to a single side exit. It finishes in a polished T304 stainless 5-inch outlet tip. No core required.
- 4-Inch Mandrel-Bent Tubing: The bends hold their full diameter with no crush points to restrict flow.
- Heavy-Gauge Aluminized Steel: Resists dents from road debris. It is best suited to dry climates without heavy road salt.
- Turbo Downpipe Included: Upper and lower downpipe sections replace the factory pipe from the turbo to the DPF in the same kit.
- Polished T304 Tip: Single-wall, rolled angle-cut tip in mirror-polished T304 stainless with a 5-inch outlet.
- Bolt-On Fit: Uses the factory flange and rubber hanger isolators with an MBRP Hang Tight hanger, band clamps, flange gasket and hardware supplied. No welding.
- CARB EO D-763-1: The turbo downpipe is covered by California Air Resources Board Executive Order D-763-1 for 2011-2014 Ford 6.7L Power Stroke trucks.
Technical Specifications
- Manufacturer: MBRP
- Part Number: S6284AL
- Product Type: Filter-back exhaust system with turbo downpipe
- Series: Installer / ARMOR Lite
- Material: Aluminized steel
- Tubing Diameter: 4 inch, mandrel bent
- Exit: Single side exit
- Tip: Polished T304 stainless, 5-inch outlet
- Truck Compatibility: 2011-2014 Ford F-250, F-350, F-450 pickups
- Engine Platform: 6.7L Power Stroke
- CARB EO: D-763-1 (downpipe)
- Core Requirement: No core required
- Warranty: 3-year MBRP warranty
Vehicle Fitment & Technical Installation Notes
Fits 2011-2014 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke diesel. It does not fit Cab & Chassis trucks.
Installation Tip: Before tightening the downpipe clamps and flanges, check clearance to the firewall, transmission cooler lines and frame. The extension pipe behind the DPF is pre-cut for the 172.4-inch Crew Cab long bed wheelbase, so trim it to length on shorter trucks.
The MBRP S6284AL fits 2011-2014 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke. It replaces the factory turbo downpipe ahead of the diesel particulate filter and the extension, over-axle and tail pipes behind it. The factory DPF and the rest of the emissions hardware stay in place.
The system runs 4-inch mandrel-bent aluminized steel tubing to a single side exit. It finishes in a polished T304 stainless 5-inch outlet tip. No core required.
4-Inch Mandrel-Bent Tubing: The bends hold their full diameter with no crush points to restrict flow.
Heavy-Gauge Aluminized Steel: Resists dents from road debris. It is best suited to dry climates without heavy road salt.
Turbo Downpipe Included: Upper and lower downpipe sections replace the factory pipe from the turbo to the DPF in the same kit.
Polished T304 Tip: Single-wall, rolled angle-cut tip in mirror-polished T304 stainless with a 5-inch outlet.
Bolt-On Fit: Uses the factory flange and rubber hanger isolators with an MBRP Hang Tight hanger, band clamps, flange gasket and hardware supplied. No welding.
CARB EO D-763-1: The turbo downpipe is covered by California Air Reso[...]
The MBRP S6284AL fits 2011-2014 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke. It replaces the factory turbo downpipe ahead of the diesel particulate filter and the extension, over-axle and tail pipes behind it. The factory DPF and the rest of the emissions hardware stay in place.
The system runs 4-inch mandrel-bent aluminized steel tubing to a single side exit. It finishes in a polished T304 stainless 5-inch outlet tip. No core required.
- 4-Inch Mandrel-Bent Tubing: The bends hold their full diameter with no crush points to restrict flow.
- Heavy-Gauge Aluminized Steel: Resists dents from road debris. It is best suited to dry climates without heavy road salt.
- Turbo Downpipe Included: Upper and lower downpipe sections replace the factory pipe from the turbo to the DPF in the same kit.
- Polished T304 Tip: Single-wall, rolled angle-cut tip in mirror-polished T304 stainless with a 5-inch outlet.
- Bolt-On Fit: Uses the factory flange and rubber hanger isolators with an MBRP Hang Tight hanger, band clamps, flange gasket and hardware supplied. No welding.
- CARB EO D-763-1: The turbo downpipe is covered by California Air Resources Board Executive Order D-763-1 for 2011-2014 Ford 6.7L Power Stroke trucks.
Technical Specifications
- Manufacturer: MBRP
- Part Number: S6284AL
- Product Type: Filter-back exhaust system with turbo downpipe
- Series: Installer / ARMOR Lite
- Material: Aluminized steel
- Tubing Diameter: 4 inch, mandrel bent
- Exit: Single side exit
- Tip: Polished T304 stainless, 5-inch outlet
- Truck Compatibility: 2011-2014 Ford F-250, F-350, F-450 pickups
- Engine Platform: 6.7L Power Stroke
- CARB EO: D-763-1 (downpipe)
- Core Requirement: No core required
- Warranty: 3-year MBRP warranty
Vehicle Fitment & Technical Installation Notes
Fits 2011-2014 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke diesel. It does not fit Cab & Chassis trucks.
Installation Tip: Before tightening the downpipe clamps and flanges, check clearance to the firewall, transmission cooler lines and frame. The extension pipe behind the DPF is pre-cut for the 172.4-inch Crew Cab long bed wheelbase, so trim it to length on shorter trucks.
