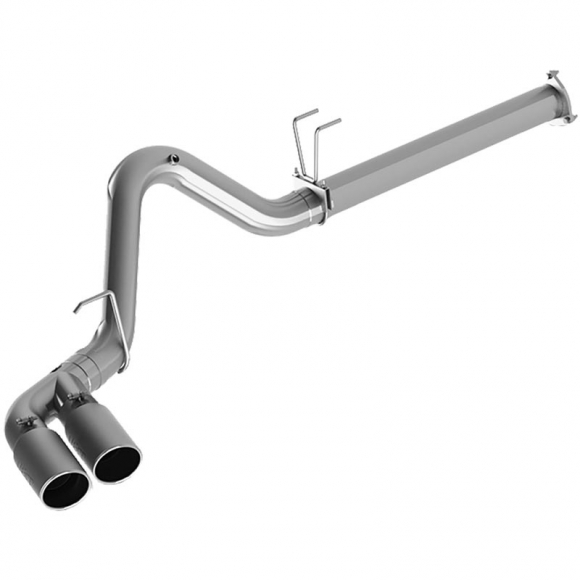

The MBRP S6288409 bolts to the DPF outlet on 2011-2016 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke, in Crew Cab and SuperCab configurations only. It replaces the factory extension, over-axle and tail pipes behind the diesel particulate filter. The factory filter and the emissions hardware ahead of it stay in place.
The system runs 4-inch mandrel-bent T409 stainless steel tubing to a dual outlet, single side exit. It finishes in two polished T304 stainless 5-inch outlet tips on the passenger side. No core required.
- 4-Inch Mandrel-Bent Tubing: The bends hold their full diameter with no crush points to restrict flow.
- 16-Gauge T409 Stainless: Resists penetrating rust better than aluminized steel. It can still show surface rust where road salt is heavy.
- Polished T304 Tips: Single-wall, rolled angle-cut tips in mirror-polished T304 stainless with a 5-inch outlet.
- Bolt-On Fit: Uses the factory flange and rubber hanger isolators with an MBRP Hang Tight hanger, band clamps, flange gasket and hardware supplied. No welding.
Technical Specifications
- Manufacturer: MBRP
- Part Number: S6288409
- Product Type: Filter-back (DPF-back) exhaust system
- Series: XP / ARMOR Plus
- Material: T409 stainless steel
- Tubing Diameter: 4 inch, mandrel bent
- Exit: Dual outlet, single side exit
- Tip: Dual polished T304 stainless, 5-inch outlet
- Truck Compatibility: 2011-2016 Ford F-250, F-350, F-450 pickups, Crew Cab and SuperCab
- Engine Platform: 6.7L Power Stroke
- Core Requirement: No core required
- Warranty: Lifetime MBRP warranty
Vehicle Fitment & Technical Installation Notes
Fits 2011-2016 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke diesel, Crew Cab and SuperCab only. It does not fit Regular Cab or Cab & Chassis trucks.
Installation Tip: The extension pipe is pre-cut for the 172.4-inch Crew Cab long bed wheelbase, so trim it to length on shorter-wheelbase trucks before final assembly. On 2011-2014 trucks without a temperature sensor at the over-axle pipe, install the supplied hex head plug in the bung.
The MBRP S6288409 bolts to the DPF outlet on 2011-2016 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke, in Crew Cab and SuperCab configurations only. It replaces the factory extension, over-axle and tail pipes behind the diesel particulate filter. The factory filter and the emissions hardware ahead of it stay in place.
The system runs 4-inch mandrel-bent T409 stainless steel tubing to a dual outlet, single side exit. It finishes in two polished T304 stainless 5-inch outlet tips on the passenger side. No core required.
4-Inch Mandrel-Bent Tubing: The bends hold their full diameter with no crush points to restrict flow.
16-Gauge T409 Stainless: Resists penetrating rust better than aluminized steel. It can still show surface rust where road salt is heavy.
Polished T304 Tips: Single-wall, rolled angle-cut tips in mirror-polished T304 stainless with a 5-inch outlet.
Bolt-On Fit: Uses the factory flange and rubber hanger isolators with an MBRP Hang Tight hanger, band clamps, flange gasket and hardware supplied. No welding.
Technical Specifications
Manufacturer: MBRP
Part Number: S6288409
Product Typ[...]
The MBRP S6288409 bolts to the DPF outlet on 2011-2016 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke, in Crew Cab and SuperCab configurations only. It replaces the factory extension, over-axle and tail pipes behind the diesel particulate filter. The factory filter and the emissions hardware ahead of it stay in place.
The system runs 4-inch mandrel-bent T409 stainless steel tubing to a dual outlet, single side exit. It finishes in two polished T304 stainless 5-inch outlet tips on the passenger side. No core required.
- 4-Inch Mandrel-Bent Tubing: The bends hold their full diameter with no crush points to restrict flow.
- 16-Gauge T409 Stainless: Resists penetrating rust better than aluminized steel. It can still show surface rust where road salt is heavy.
- Polished T304 Tips: Single-wall, rolled angle-cut tips in mirror-polished T304 stainless with a 5-inch outlet.
- Bolt-On Fit: Uses the factory flange and rubber hanger isolators with an MBRP Hang Tight hanger, band clamps, flange gasket and hardware supplied. No welding.
Technical Specifications
- Manufacturer: MBRP
- Part Number: S6288409
- Product Type: Filter-back (DPF-back) exhaust system
- Series: XP / ARMOR Plus
- Material: T409 stainless steel
- Tubing Diameter: 4 inch, mandrel bent
- Exit: Dual outlet, single side exit
- Tip: Dual polished T304 stainless, 5-inch outlet
- Truck Compatibility: 2011-2016 Ford F-250, F-350, F-450 pickups, Crew Cab and SuperCab
- Engine Platform: 6.7L Power Stroke
- Core Requirement: No core required
- Warranty: Lifetime MBRP warranty
Vehicle Fitment & Technical Installation Notes
Fits 2011-2016 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke diesel, Crew Cab and SuperCab only. It does not fit Regular Cab or Cab & Chassis trucks.
Installation Tip: The extension pipe is pre-cut for the 172.4-inch Crew Cab long bed wheelbase, so trim it to length on shorter-wheelbase trucks before final assembly. On 2011-2014 trucks without a temperature sensor at the over-axle pipe, install the supplied hex head plug in the bung.
