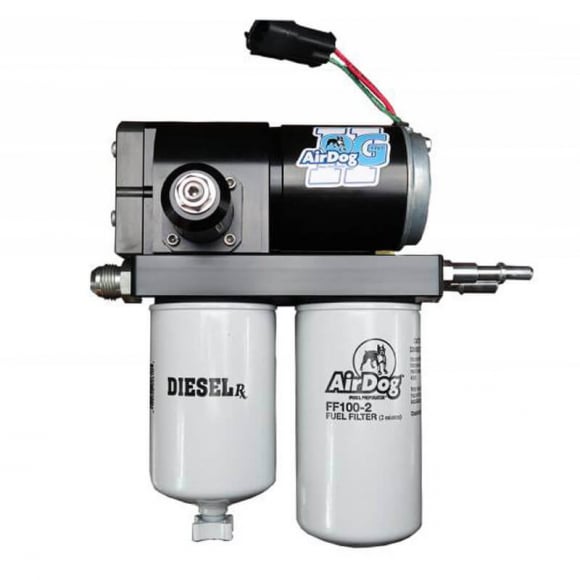

Engineered for 2004.5–2018 Dodge Ram 2500 and 3500 diesel trucks powered by the 5.9L Common Rail or 6.7L 24V Cummins engine, the PureFlow AirDog II-5G DF-165 System (A7SABD526) delivers high-efficiency fuel air separation tailored for moderately to aggressively modified trucks. Demanding performance calibrations, upgraded CP3 pumps, and larger injectors pull high vacuum across factory fuel lines, drawing entrained air and vapor bubbles into the fuel supply. This air disruption distorts injector spray patterns, induces plunger galling, and triggers P0087 and P1093 low fuel rail pressure trouble codes; the AirDog II-5G eliminates these bottlenecks by providing steady, deaerated positive pressure.

The 5G system features an integrated diaphragm fuel pressure regulator mechanically adjustable from 7 to 55 PSI, providing steady line pressure at high flow rates with optional boost compensation capability to combat fuel pressure drops under full throttle. Fuel is drawn directly through an included Fuel Module Upgrade Kit that installs into the factory tank basket with a 1/2-inch bulkhead fitting, bypassing the restrictive factory in-tank pump. An upgraded 12-gauge wiring harness with Metri-Pack 280 sealed connectors delivers high current without heat buildup to power a self-aligning 4-bearing motor with an intermediate shaft. Operating with AirDog’s Demand Flow deaeration circuit, the system continuously removes air, vapor, and moisture down to 2 microns absolute while recycling unconsumed fuel directly back through the filter base.

Key Features & Benefits

• High-Capacity 165 GPH Flow Rate: Supplies 165 gallons per hour of pure diesel fuel to easily support daily towing, hot street tunes, and performance upgrades producing up to 1,000 HP.
• Integrated Diaphragm Pressure Regulator: Mechanically adjustable from 7 to 55 PSI (factory preset to 15–17 PSI) to dial in exact injection pump inlet pressure; supports optional boost compensation.
• Demand Flow Fuel Recirculation: Recirculates unused filtered diesel directly through the filter base rather than continuously dumping hot fuel back to the tank, extending pump life and maintaining cool fuel temperatures.
• In-Tank Fuel Module Upgrade Kit: Includes an in-tank suction tube and 1/2-inch bulkhead fitting to bypass the factory in-tank pump; vents air and vapor back through the original 3/8-inch factory suction line without cutting the filler neck.
• Upgraded 12-Gauge Metri-Pack Harness: Heavy 12-gauge wiring from the battery to the pump with sealed Metri-Pack 280 connectors handles high current draw without terminal heating or voltage drop.
• Dual-Stage 2-Micron Filtration: Combines an external spin-on water separator (WS100) and a 2-micron particulate filter (FF100-2) to stop moisture and sub-micron abrasive particles before they reach the CP3 pump and common rail injectors.
• Self-Aligning Intermediate Shaft Motor: Dampens motor noise, centers the gerotor gear set, and reduces mechanical drag for whisper-quiet, long-term chassis operation.

Technical Specifications

• Manufacturer Part Number / SKU: A7SABD526 (DF-165-5G Series)
• Truck Platform: 2004.5–2009 (3rd Gen) & 2010–2018 (4th Gen) Ram Heavy Duty 2500 / 3500
• Engine Platform: 2004.5–2007 5.9L Common Rail & 2007.5–2018 6.7L 24V Cummins Turbo Diesel
• Flow Rating: 165 Gallons Per Hour (GPH)
• Operating Pressure: Mechanically Adjustable from 7 to 55 PSI (Preset to 15–17 PSI)
• Pressure Regulator Type: Integrated Diaphragm Regulator with Boost Compensation Port
• Horsepower Rating: Recommended for Stock to 1,000 HP Applications
• Filtration Rating: 2-Micron Particulate Filter (FF100-2) & High-Efficiency Water Separator (WS100)
• Suction Hardware: Fuel Module Upgrade Kit (1/2" Bulkhead Assembly)
• Electrical System: 12-Gauge Relay Harness with Metri-Pack 280 and Weather Pack Connectors
• Mounting System: Drill-Free Frame Sandwich Plate Brackets
• Warranty: PureFlow AirDog Limited Lifetime Warranty (with completed product registration)

Vehicle Fitment & Installation Notes

• 2004.5–2007 Dodge Ram 2500 / 3500 – 5.9L 24V Common Rail Cummins (Engine Codes "ETH" 325 HP)
• 2007.5–2009 Dodge Ram 2500 / 3500 – 6.7L 24V Cummins Turbo Diesel
• 2010–2018 Ram 2500 / 3500 – 6.7L 24V Cummins Turbo Diesel
• Fits Model Years: 2004.5, 2005, 2006, 2007, 2007.5, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
• Fitment Notice: Engineered for trucks with the in-tank lift pump setup. Early 2004 and older 5.9L trucks equipped with factory engine-mounted canister pumps require kit A7SABD525. Does not fit 2019+ Ram chassis platforms.
• Installation Tip: Install the Fuel Module Upgrade Kit into the factory fuel basket following the template to ensure the 1/2" suction tube sits 1/4" off the bottom; connect the AirDog air/vapor return line directly to the factory 3/8" suction line fitting on top of the module to eliminate the need for an external filler-neck splice.
