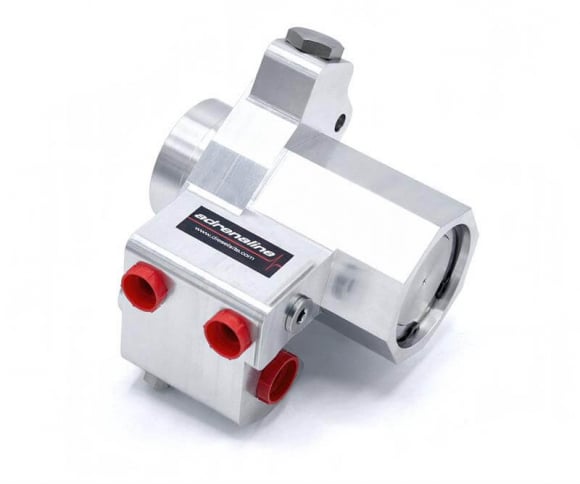

The DieselSite ADRB95 is the billet housing version of the Adrenaline high pressure oil pump for 1994-1995 7.3L Powerstroke engines that need the anti-drainback feature. It is a bolt-on, high-volume replacement for a worn factory HPOP that can no longer hold injection control pressure under load, which shows up as long cranks, low power and a P1211 code.

What sets the ADRB95 apart is the housing. DieselSite machines it from billet instead of reusing a factory cast housing, which addresses the weak threads and common leak points of the original casting. Each Adrenaline is flow tested to the same spec before it ships, and it is built to use the later 1996-2003 style IPR valve.

• Billet Housing: Stronger threads and fewer leak points than the factory casting.
• Anti-Drainback Design: Matches early engines, serial number 201680 and before.
• Flow Tested: Every pump is tested to the same flow spec before shipping.
• Injector Support: Stock through 175cc single shot, AC injectors to 200cc and hybrids to 285cc with tuning.
• Uses Later IPR: Built for the 1996-2003 style injection pressure regulator.

Technical Specifications

• Part Number: ADRB95
• Manufacturer: DieselSite
• Housing: Billet
• Feature: Anti-drainback
• Included: 2 outlet fitting O-rings, 3 IPR O-rings, mounting gasket
• Core Requirement: Yes, a core return applies. Send your old 7.3L pump back per the core terms.
• Warranty: 3-year unlimited mileage (DieselSite)

Vehicle Fitment & Technical Installation Notes

• Fitment: 1994-1995 Ford 7.3L Powerstroke with engine serial number 201680 and before. Engines 201681 and later use the non anti-drainback pump.
• Installation Tip: Do not reinstall the factory check springs behind the outlet fittings. DieselSite says they are not compatible with the Adrenaline and can cause problems and warranty issues.
