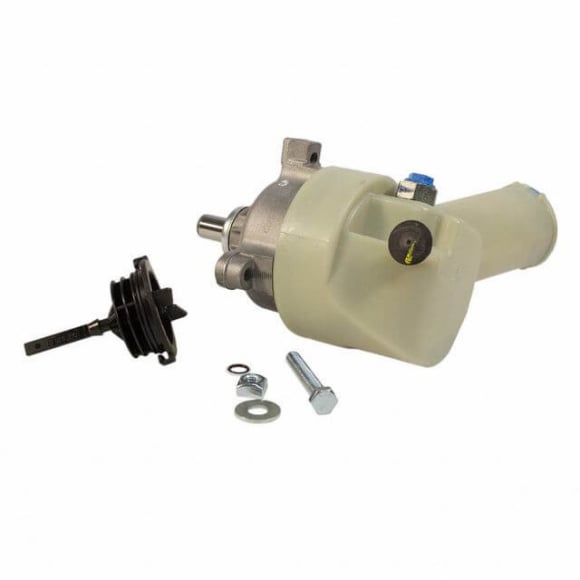

The Motorcraft F1TZ-3A674-DBRM is the remanufactured power steering pump for a 1999–2003 7.3 Powerstroke. Motorcraft lists it as STP56RM. It is a core pump. The new pump is Edelmann 6014R.
It is the hydro-boost style, with one pressure outlet and two returns, and the reservoir is on the pump. A core charge applies. The pulley is not included. The old pulley has to be pressed on. It also covers the early 6.0 Super Duty.
It fits 1999–2003 F-250 through F-550 and 2000–2003 Excursion trucks with the 7.3 and this port layout.
Fitment
- 1999–2003 Ford F-250 through F-550 7.3L
- 2000–2003 Ford Excursion 7.3L
- Remanufactured Motorcraft
- Reservoir on the pump
- Pulley not included
- Core charge applies
Match the ports before you order. Flush the system when this one goes on, or the reman eats the old fluid.
The Motorcraft F1TZ-3A674-DBRM is the remanufactured power steering pump for a 1999–2003 7.3 Powerstroke. Motorcraft lists it as STP56RM. It is a core pump. The new pump is Edelmann 6014R.
It is the hydro-boost style, with one pressure outlet and two returns, and the reservoir is on the pump. A core charge applies. The pulley is not included. The old pulley has to be pressed on. It also covers the early 6.0 Super Duty.
It fits 1999–2003 F-250 through F-550 and 2000–2003 Excursion trucks with the 7.3 and this port layout.
Fitment
- 1999–2003 Ford F-250 through F-550 7.3L
- 2000–2003 Ford Excursion 7.3L
- Remanufactured Motorcraft
- Reservoir on the pump
- Pulley not included
- Core charge applies
Match the ports before you order. Flush the system when this one goes on, or the reman eats the old fluid.
Q
Austin Al-Dijaili • 03/20/2025, 4:36:53 AM
Hey, so I recently bought a motorcraft pump from my local ford and the thing didn’t work out of the box. My guess is because it sat on a shelf for 10 years. Had to replace it with a cheap O’Reillys Pump and it’s loud and annoying. The question is have yall had any sort of problems like that with old stock deteriorating or not working right from the remanufacturing process.
A
03/20/2025, 12:56:26 PM
Our parts ship direct form the Ford Part Distributor and should be current production.
Q
Keith • 05/02/2025, 8:20:18 PM
My question is if these are a reman or brand new?
A
05/14/2025, 6:39:05 PM
Reman by Ford. New is no longer offered by the OE manufacturer.
