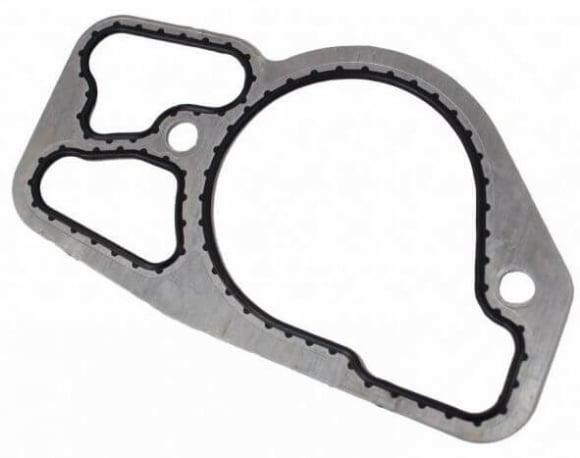

The Ford F6TZ-9417-AA is the mounting gasket between the high-pressure oil pump and the front cover on a 1996–2003 7.3 Powerstroke. It is the gasket only. The pump is not included.
That gasket is not reusable. Any time the HPOP comes off for a pump, the repair plug, or a leak at the cover, this one gets replaced. A reused gasket weeps oil at the front cover and can bleed the pressure the injectors need. Torque the two mounting bolts to 18 lb-ft. More than that can warp the cover. It cross-references International 1830830C1.
It fits 1996–2003 Super Duty, OBS, and Excursion 7.3 trucks. A 1994–1995 pump uses F4TZ-9417-A.
Fitment
- 1996–2003 Ford 7.3L Powerstroke
- HPOP to front cover
- Genuine Ford F6TZ-9417-AA
- Gasket only
- Torque 18 lb-ft
- Does not fit 1994–1995
If the leak is at the bottom plug, the gasket will not fix it. That is the DieselSite HPOPRP, and the pump still has to come off.
