Garrett 6.0L Powerstroke Stock Turbo Rebuild Kit (740659-0010)

The Garrett 740659-0010 is a Garrett-brand bearing and seal service kit for the GT3782VA turbo on the 6.0L Powerstroke. If your stock turbo is leaking oil or has worn bearings, it supplies the journal bearings, thrust parts, piston rings, O-rings and hardware for a stock-style rebuild.

Key Benefits & Features

• Garrett Service Kit: Garrett’s own repair kit for GT3782VA turbos, part number 740659-0010.
• Bearings and Thrust Parts: Journal bearings, bearing spacer, retaining ring, thrust bearing and thrust collar.
• Seals and Hardware: Turbine and compressor piston rings, O-rings, bolts and screws.

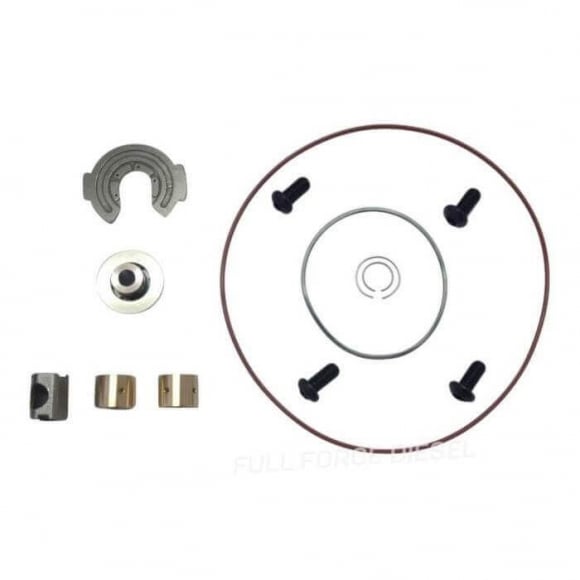

• What's in the Box: Journal bearings, retaining ring, bearing spacer, thrust bearing, thrust collar, turbine piston ring, compressor piston ring, O-rings, bolts and screws.

Fitment

• 2004–2007 Ford F-250 and F-350 Super Duty 6.0L Powerstroke Diesel
• 2004–2007 Ford F-450 / F-550 Super Duty 6.0L Powerstroke Diesel
• 2004–2005 Ford Excursion 6.0L Powerstroke Diesel
• Garrett GT3782VA turbocharger
• Part Number: Garrett 740659-0010

Tech & Installation Notes

• Wear Parts Only: A service kit replaces wear parts. If the wheels have rubbed the housings or debris has gone through the turbo, plan on more parts, such as a new bearing housing (KC 300337 or 300466).
• Builder-Level Job: Check shaft play and clearances against factory service limits during assembly, or have a turbo shop do the rebuild.
