The Mishimoto MMICP-F2D-03BK is a complete hot-and-cold-side charge air cooler (CAC) intercooler pipe, boot, and clamp upgrade system engineered specifically for 2003–2007 Ford F-250, F-350, F-450, and F-550 Super Duty trucks and 2003–2005 Ford Excursions equipped with the 6.0L Powerstroke diesel engine. Designed to completely overhaul the charge-air system, this kit replaces both the factory hot-side pipe and the failure-prone factory plastic composite cold-side pipe with mandrel-bent 3.00-inch polished aluminum tubing. The kit includes Mishimoto's direct-fit silicone boots engineered with proprietary DuraCore technology—an innermost synthetic fluoroelastomer barrier integrated into multi-ply silicone that delivers superior resistance to heat, pressure, fuel, and crankcase ventilation (CCV) oil mist—preventing the degradation, softening, and blowouts that plague factory rubber couplers.

Catastrophic driver-side plastic intercooler pipe splits along factory molded seams, restrictive factory hot-side bends choking airflow, boots blowing off under heavy towing or aggressive tuning, elevated exhaust gas temperatures (EGTs), sluggish throttle response, and boost leaks from oil-soaked factory rubber couplers are what this complete kit cures. On 6.0L Powerstroke trucks, the factory plastic cold tube softens and fatigues from continuous underhood heat cycling and blow-by oil saturation until it bursts under load, while the factory hot pipe endures extreme compressor outlet temperatures exceeding 350°F. The Mishimoto MMICP-F2D-03BK eliminates all factory weak points by utilizing continuous mandrel-bent aluminum piping that maximizes airflow volume and dissipates heat effectively. Paired with heavy-duty constant-tension spring-loaded T-bolt clamps, it ensures a reliable, airtight seal that withstands sustained high-boost pressures. It comes packaged as a complete installation kit containing the hot-side polished aluminum pipe, cold-side polished aluminum pipe, four black DuraCore silicone boots, and eight constant-tension stainless steel T-bolt clamps; aftermarket intake elbows and intercooler cores are sold separately.

It fits all 2003–2007 Ford Super Duty F-250, F-350, F-450, and F-550 trucks and 2003–2005 Ford Excursions equipped with the 6.0L Powerstroke turbo diesel engine (Note: Hot-side pipe is designed for single-alternator configurations; will not fit dual-alternator setups).

Fitment

• 2003–2007 Ford F-250 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-350 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-450 / F-550 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2005 Ford Excursion 6.0L Powerstroke Turbo Diesel
• Mandrel-bent 3.00-inch polished aluminum tubing replaces brittle OEM plastic and restrictive hot piping
• Eliminates failure-prone factory plastic cold-side pipes that rupture under towing boost levels
• Smooth constant-radius bends maximize airflow velocity and reduce intake restriction into the plenum
• DuraCore synthetic inner boot layer delivers superior resistance to heat, pressure, fuel, and CCV oil
• Five-ply silicone construction with embedded heat-resistant fibers rated up to 428°F
• Includes eight heavy-duty spring-loaded constant-tension stainless steel T-bolt clamps
• Precision bead-rolled pipe ends provide a positive mechanical interlock to prevent boot blow-off
• Backed by Mishimoto's Signature Lifetime Warranty

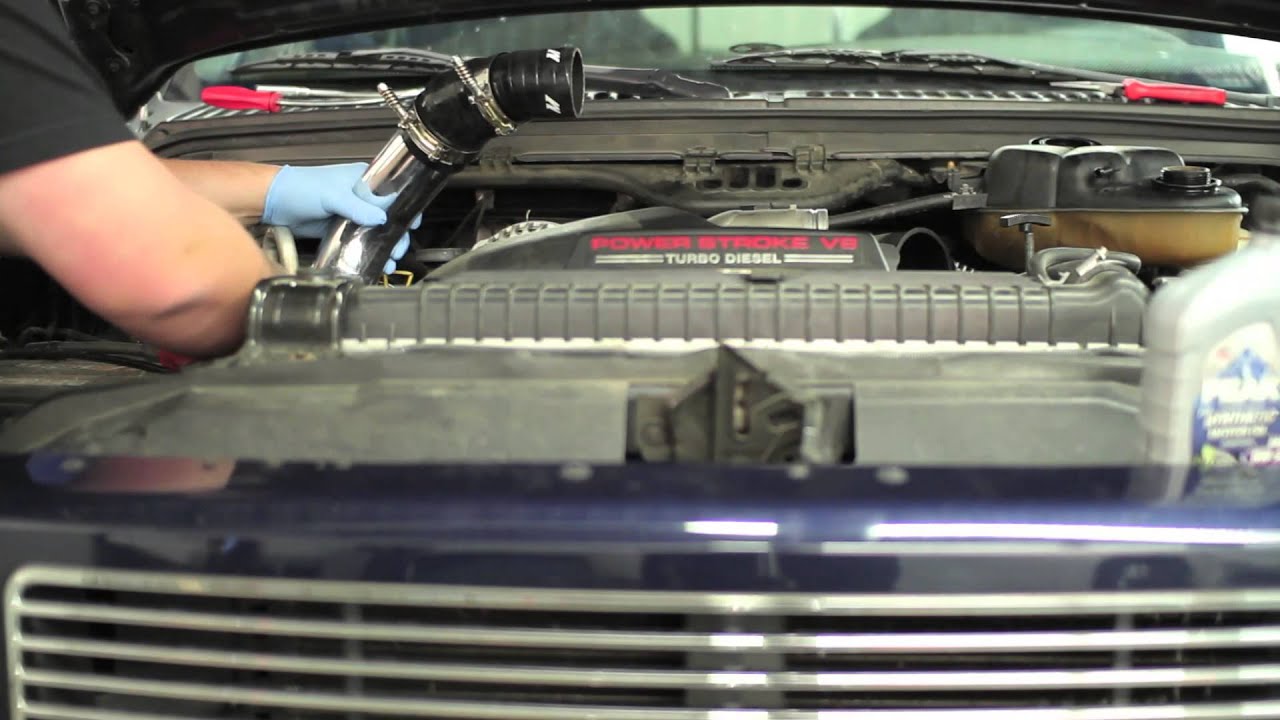

Park the truck on a level surface, engage the parking brake, and disconnect both negative battery cables. Allow the engine compartment and charge-air piping to cool completely before servicing. On the passenger side, loosen the factory T-bolt clamps on the hot-side charge pipe at the turbocharger compressor outlet and the lower intercooler inlet using an 11mm (or 7/16-inch) deep socket, then unbolt any factory support brackets and remove the stock metal hot pipe. On the driver side, loosen the clamps at the upper intake elbow and lower intercooler outlet, then maneuver the brittle factory plastic cold pipe assembly clear of the engine bay. Thoroughly clean the aluminum turbo compressor outlet neck, both intercooler tank stubs, and the intake elbow inlet with brake cleaner and a lint-free cloth to eliminate all traces of oil residue, soot, and road grit (any residual oil film left on the retaining beads will cause boots to slip under boost). Slide the included constant-tension T-bolt clamps loosely onto each of the four Mishimoto DuraCore silicone boots. Lightly spray the inner lips of the boots with isopropyl alcohol or aerosol hairspray to help them slide smoothly over the raised metal retaining lips without tearing. Slide the appropriate boots onto the turbo compressor outlet, intake elbow, and intercooler tank ports until fully seated. Maneuver the hot-side and cold-side polished aluminum charge pipes into position, sliding each end into the boots while checking for a minimum 1/2-inch radial clearance around the steering shaft, battery tray, A/C hard lines, and upper radiator hoses. Position each T-bolt clamp squarely behind the raised bead-rolled retaining lips on each pipe stub (never clamp directly on top of the bead, which cuts the silicone). Using a calibrated torque wrench, tighten all eight T-bolt clamp nuts to 9–12 ft-lbs (106–142 in-lbs) until the tension springs compress evenly. Reconnect both negative battery cables, start the engine, and perform a test drive bringing manifold boost pressure to 24–28 PSI under load to confirm complete boost pressure retention and zero charge-air leaks.
