The Mishimoto MMBK-F2D-03BK is a complete hot-side silicone boot kit featuring DuraCore technology and constant-tension clamps engineered to permanently seal passenger-side charge piping.

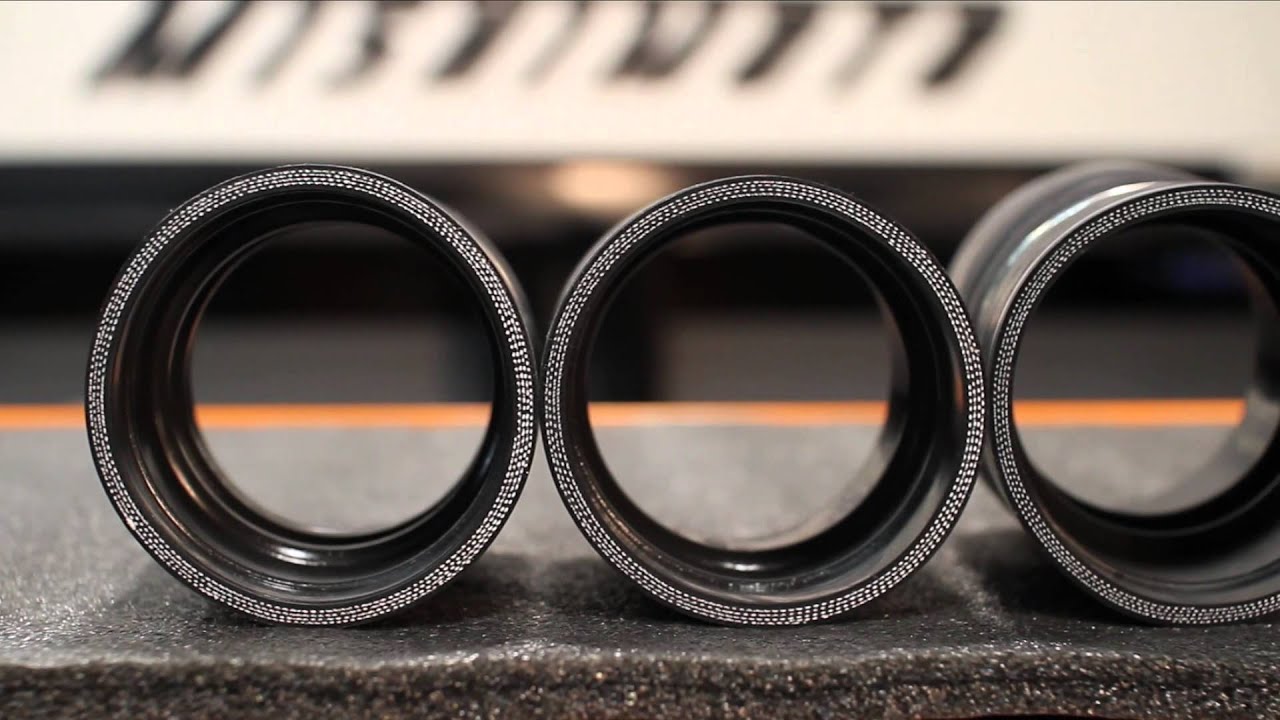

The Mishimoto MMBK-F2D-03BK is a direct-fit factory replacement passenger-side (hot-side) charge air cooler (CAC) intercooler boot and clamp kit engineered specifically for 2003–2007 Ford F-250, F-350, F-450, and F-550 Super Duty trucks, 2003–2005 Ford Excursions, and 2004–2010 Ford E-Series vans equipped with the 6.0L Powerstroke diesel engine. This complete hot-side service kit includes both the upper 45-degree turbo discharge elbow boot and the lower intercooler inlet boot, along with four matching heavy-duty hardware clamps. Constructed with Mishimoto's proprietary DuraCore technology, the innermost layer features a synthetic fluoroelastomer barrier integrated directly into five layers of heat-resistant, fiber-reinforced silicone. This specialized composite provides superior resistance to crankcase ventilation (CCV) blow-by oil mist, extreme compressed-air heat, and high boost pressure, eliminating the rubber degradation, softening, ballooning, and split seams common to factory rubber couplers.

Loud underhood popping noises under acceleration, sudden and complete loss of boost pressure, sluggish throttle response, high exhaust gas temperatures (EGTs), heavy black exhaust smoke, and oily soot coating the passenger-side battery box and lower radiator support are what this kit cures. On the 6.0L Powerstroke, both ends of the passenger-side hot pipe endure the harshest operating conditions in the charge-air system: uncooled air exiting the compressor often exceeds 350°F, while continuous engine torque twist and pooling CCV oil vapor deteriorate stock rubber hoses until they tear along clamp edges or blow completely off the metal retention beads under heavy towing. The Mishimoto MMBK-F2D-03BK overhauls the entire hot-side plumbing run with high-strength silicone designed to hold peak boost pressures reliably. It comes packaged as a complete kit containing two hot-side silicone boots (upper and lower) and four spring-loaded stainless steel constant-tension T-bolt clamps; metal CAC intercooler pipes are sold separately.

It fits all 2003–2007 Ford Super Duty F-250, F-350, F-450, and F-550 trucks, 2003–2005 Ford Excursions, and 2004–2010 Ford E-250, E-350, and E-450 Econoline vans equipped with the 6.0L Powerstroke turbo diesel engine (passenger-side hot charge pipe run).

Fitment

• 2003–2007 Ford F-250 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-350 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-450 / F-550 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2005 Ford Excursion 6.0L Powerstroke Turbo Diesel
• 2004–2010 Ford E-250 / E-350 / E-450 Econoline Van 6.0L Powerstroke Turbo Diesel
• DuraCore synthetic inner layer delivers superior resistance to heat, boost pressure, fuel, and oil
• Five-ply silicone construction with embedded heat-resistant fibers rated up to 428°F
• Includes upper 45-degree elbow boot and lower intercooler inlet boot for a complete hot-side refresh
• Includes four heavy-duty spring-loaded constant-tension stainless steel T-bolt clamps
• Engineered to exact OEM dimensions for direct drop-in fitment on factory 6.0L hot-side piping
• Eliminates hot-side boot blow-off, split seams, and lost turbocharger boost pressure
• Direct replacement for OEM hot-side boots (Replaces Ford 6C3Z-6C640-A and 6C3Z-6C640-B)
• Backed by Mishimoto’s Signature Lifetime Warranty

Park the truck on a level surface, engage the parking brake, and disconnect both negative battery cables. Allow the engine compartment and charge-air system to cool completely before servicing. Using an 11mm (or 7/16-inch) deep socket, loosen the constant-tension T-bolt clamps at the upper turbo discharge connection and at the lower passenger-side intercooler inlet (accessible from underneath the front bumper or through the inner fender liner). Work the factory rubber boots off the turbo outlet neck and intercooler inlet stub, then unbolt and maneuver the metal hot-side intercooler pipe clear of the engine bay. Thoroughly clean the aluminum turbo outlet neck, the lower intercooler inlet stub, and both retaining ends of the metal hot-side tube using brake cleaner and a lint-free rag to remove all traces of oil residue, carbon soot, and road grime (any residual oil film left on the retaining beads will cause boots to slip under boost). Slide the included constant-tension T-bolt clamps loosely onto each of the two Mishimoto silicone boots. Lightly spray the inside of both boots with isopropyl alcohol or aerosol hairspray to help them slide smoothly over the raised metal retaining beads. Slide the upper 45-degree elbow boot onto the upper pipe/turbo connection and the lower boot onto the intercooler inlet neck until firmly seated. Reinstall the metal hot-side pipe into the opposite ends of the boots, making sure the pipe is centered and that each boot bridges the joint without binding or rubbing against the battery tray. Position each T-bolt clamp directly behind the raised retaining beads on each pipe stub (never clamp directly on top of the bead, which cuts the silicone). Using a calibrated torque wrench, tighten all four T-bolt clamps to 9–12 ft-lbs (106–142 in-lbs) until the tension springs compress evenly. Reconnect both negative battery cables, start the engine, and perform a test drive bringing manifold boost pressure to 24–28 PSI under load to verify a secure, leak-free connection.
