Thumbnail Filmstrip of 1994-2003 7.3L Powerstroke Transmission Pan Mag-Hytec F4R100 Images

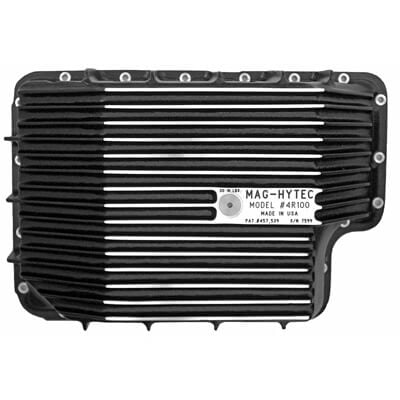

The Mag-Hytec F4R100 is a deep transmission pan for a 1994–2003 7.3 with an E4OD or a 4R100. It holds about 7.6 quarts more than the stock pan.
The pan is cast A356-T6 aluminum with cooling fins. A magnetic drain plug, an O-ring, and the hardware are in the box. A 1/8-inch NPT port is already tapped for a temperature sender. No paper gasket. It is deep enough that it takes the 4x4 filter, Motorcraft FT-114, even on a 2WD.
It fits 1994–2003 7.3 trucks with an E4OD or 4R100. The same pan is used on gas trucks with those transmissions.
Fitment
- 1994–2003 Ford 7.3L Powerstroke
- E4OD and 4R100
- About 7.6 quarts over stock
- Magnetic drain plug
- 1/8-inch NPT sender port
- O-ring included
- Uses the 4x4 filter, FT-114.
Check ground clearance on a lowered truck. Fill it to the full mark after it is warm. The extra fluid is what drops the temperature.
The Mag-Hytec F4R100 is a deep transmission pan for a 1994–2003 7.3 with an E4OD or a 4R100. It holds about 7.6 quarts more than the stock pan.
The pan is cast A356-T6 aluminum with cooling fins. A magnetic drain plug, an O-ring, and the hardware are in the box. A 1/8-inch NPT port is already tapped for a temperature sender. No paper gasket. It is deep enough that it takes the 4x4 filter, Motorcraft FT-114, even on a 2WD.
It fits 1994–2003 7.3 trucks with an E4OD or 4R100. The same pan is used on gas trucks with those transmissions.
Fitment
- 1994–2003 Ford 7.3L Powerstroke
- E4OD and 4R100
- About 7.6 quarts over stock
- Magnetic drain plug
- 1/8-inch NPT sender port
- O-ring included
- Uses the 4x4 filter, FT-114.
Check ground clearance on a lowered truck. Fill it to the full mark after it is warm. The extra fluid is what drops the temperature.
Q
Alex • 01/18/2026, 6:03:20 PM
Does this fit the E4OD auto transmission?
A
01/19/2026, 2:56:04 PM
Fits: 7.3 Powerstroke 1994-2003
5/5 Stars out of 2 Reviews
0
0
0
0
2
Robert Snavely (Jasper) | July 21st, 2024
Pan is very well made, looks good and tough as a rock, held over 7 quarts more than stock pan, lowered my transmission temps, had installed at local oil change shop, they said it was a easy install and had everything it needed to install it with in the box, I had them change filter too.
Jack West (Oregon) | February 15th, 2020
Wow this pan is solid ! Beautiful craftsmanship, made to last a lifetime ! Easy install awesome seal. Time will tell how my tran's temp does. Adding the FFD Intercooler and the combo should make temp worrie's a bygone era when towing our 9,500 K 5th wheel. There are a lot of steep,long pull's out here in the west.More on that later! FFD has so far been a great company to order from and assistance with choice's on equipment to improve my OBS has been great !!
