Thumbnail Filmstrip of 1994-2003 7.3L Powerstroke 4R100 Transmission Pan Gasket Moroso 93105 Images

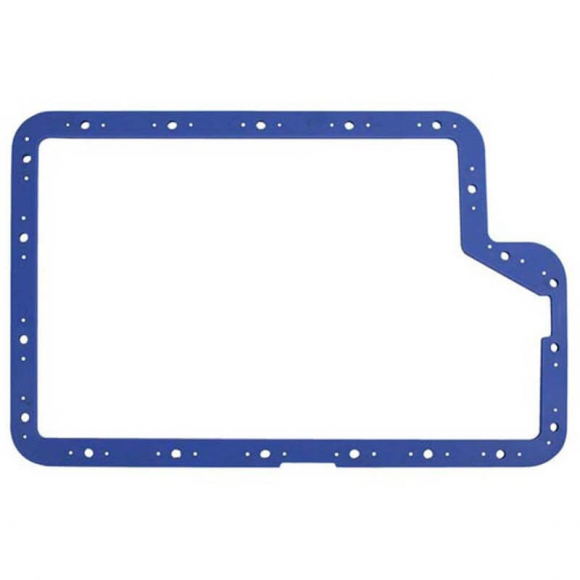

The Moroso 93105 is a pan gasket for a 1990–2003 truck with an E4OD or a 4R100. It is the steel-core gasket. A cork gasket is what weeps after a heat cycle.
The rubber is 3/16 inch, about 40 durometer, vulcanized to a steel frame. No sealant. It will not suck in the way a soft gasket does. Bolts and studs are not included. A 5R110 uses a different gasket.
It fits 1990–2003 F-Series trucks with an E4OD or 4R100, including the 7.3.
Fitment
- 1990–2003 Ford E4OD and 4R100
- 7.3 Powerstroke and gas
- Rubber with a steel core
- 3/16 inch thick
- No sealant
- Sold individually
Clean both surfaces. Torque the pan bolts in a cross pattern, about 9 lb-ft. A deep pan that already has an O-ring does not use this gasket.
The Moroso 93105 is a pan gasket for a 1990–2003 truck with an E4OD or a 4R100. It is the steel-core gasket. A cork gasket is what weeps after a heat cycle.
The rubber is 3/16 inch, about 40 durometer, vulcanized to a steel frame. No sealant. It will not suck in the way a soft gasket does. Bolts and studs are not included. A 5R110 uses a different gasket.
It fits 1990–2003 F-Series trucks with an E4OD or 4R100, including the 7.3.
Fitment
- 1990–2003 Ford E4OD and 4R100
- 7.3 Powerstroke and gas
- Rubber with a steel core
- 3/16 inch thick
- No sealant
- Sold individually
Clean both surfaces. Torque the pan bolts in a cross pattern, about 9 lb-ft. A deep pan that already has an O-ring does not use this gasket.
Fits: Powerstroke 1994-2010 (E4OD, 4R100, 5R110) (Automatic Only)
Fits: Powerstroke 1994-2010 (E4OD, 4R100, 5R110) (Automatic Only)
Fits: 7.3 Powerstroke 1994-2003 E4OD/4R100 (Automatic Only)
Fits: Powerstroke 1994-2010 (E4OD, 4R100, 5R110) (Automatic Only)
Fits: Powerstroke 1996-2010 (Automatic Only)
